Euro Cap Assembly Machine Perfect Combination Of Speed And Precision

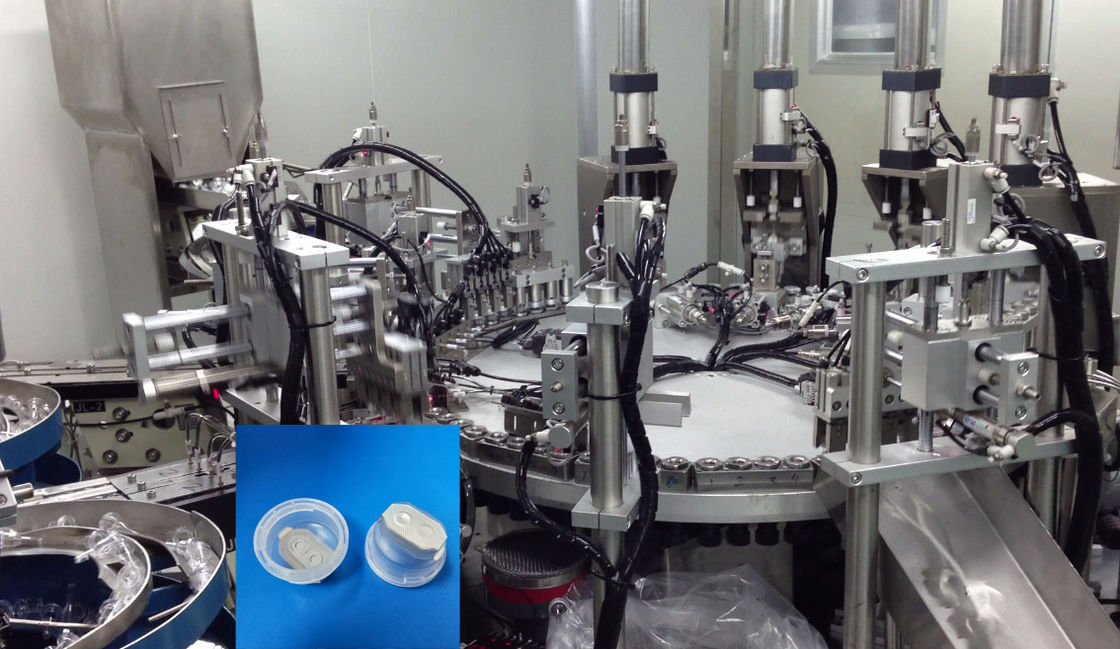

Large Image : Euro Cap Assembly Machine Perfect Combination Of Speed And Precision

Product Details:

Place of Origin:	CHINA
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-713

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Product Brand:	Euro	Main Drive:	Servo Motor And Vibration Disc
Control System:	PLC	Control:	PLC
Operation Interface:	Touch Screen	Power Consumption:	2.5kW
Packing:	Wooden Case	Power Supply:	220V/380V
Product Frequency:	50Hz	Operating Mode:	Automatic
Power Source:	Electric	Operating Interface:	Touch Screen
Air Pressure:	0.6-0.8MPa	Bottle Height Range:	50-200mm
Assembly Capacity:	4500-12000 Per/hour
Highlight:	Precision Euro Cap Assembly Machine , 2.5kW Euro Cap Assembly Machine

Features

1. mainly used for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles

2. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. Foil being cut and welded on machine automatically .

6. Each assemble process is followed with check function to ensure that there are no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.

10. Highly customized according to customer's product specifications, actual capacity and production demand.

Properties

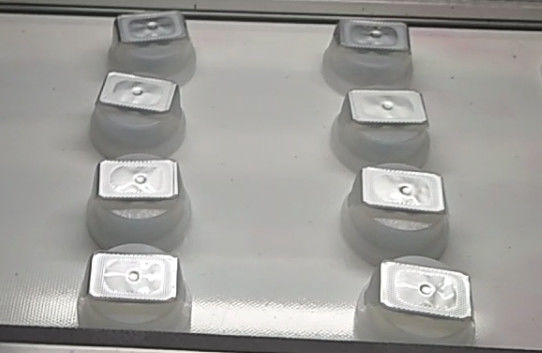

Applicable products	Peel seal foil caps, foil seal closures and lids
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
