High-Performance Euro Cap Assembly Machine for Industrial Manufacturing

Large Image : High-Performance Euro Cap Assembly Machine for Industrial Manufacturing

Product Details:

Place of Origin:	CHINA
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-718

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Colour:	Stainless Steel Metallic Color	Operation Interface:	Touch Screen
Operation Type:	Turntable	Operation:	Touch Screen
Product Frequency:	50Hz	Operating Speed:	Adjustable
Main Power:	Servo	Power Supply:	220V/50Hz
Air Consumption:	0.3 M3/min	Speed:	Adjustable
Suitable Caps:	Euro Caps	Operator:	Single Or Double
Operating Method:	Turntable	Satisfactory Rate:	Above 99%

Features

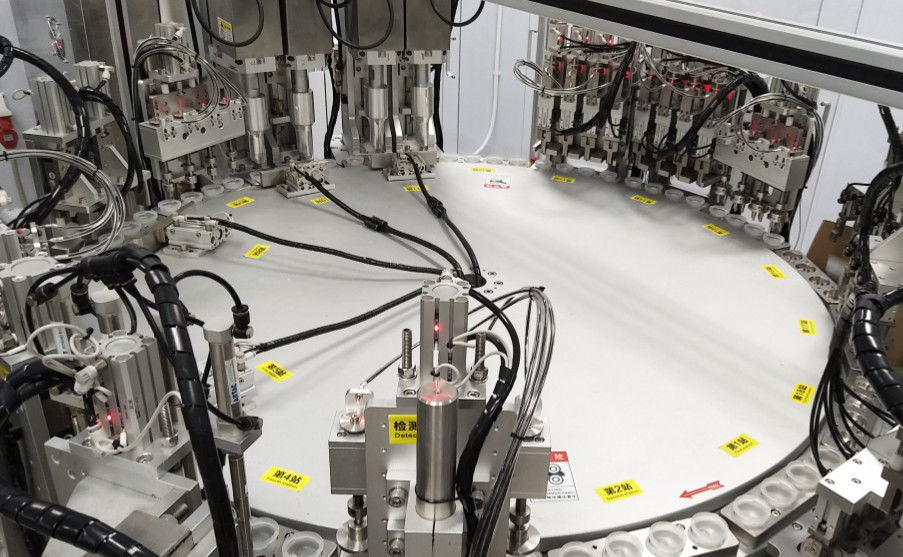

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

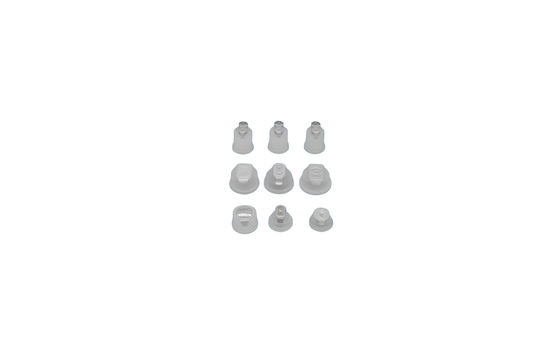

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
