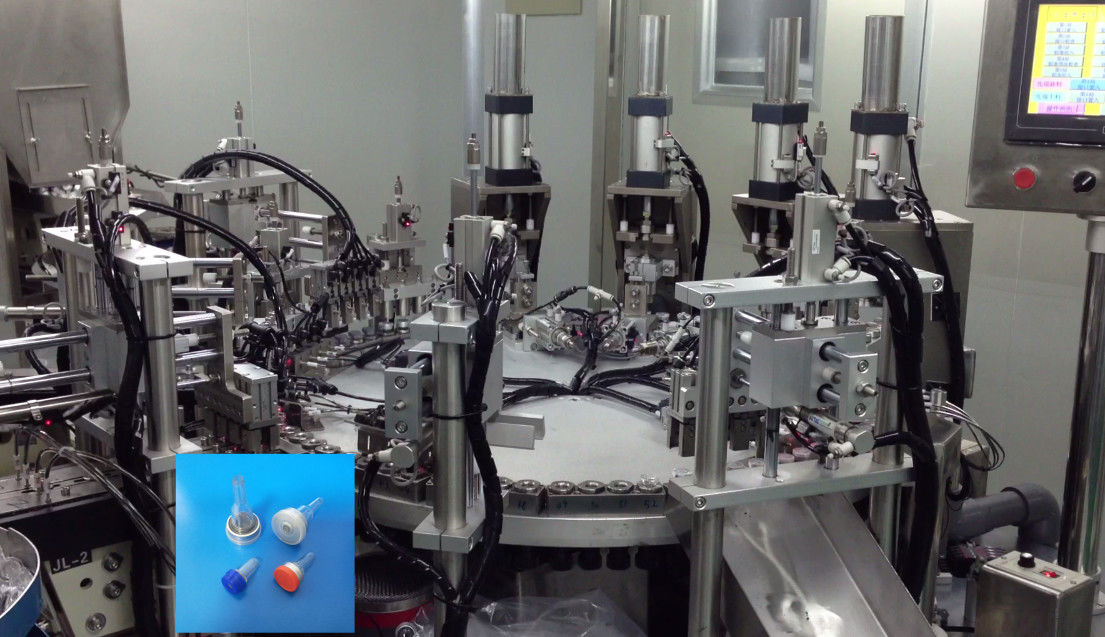

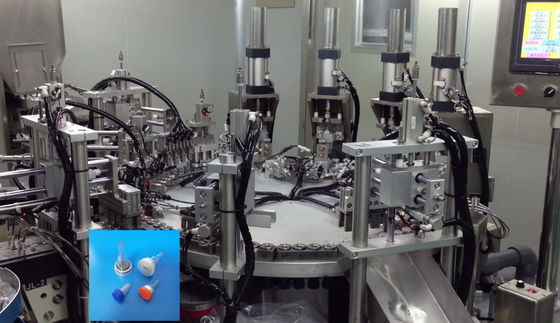

IV Bag Spike Ports And Injection Ports Automatic Assembly Machine

Brand Name:	SENCAN
Model Number:	SC-TP-731
MOQ:	1 set
Price:	Negotiate according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Features:

High Precision, Fast Speed, Easy To Operate

Applicable Products:

IV Bag Spike Ports And Injection Ports Assembly Machine

Active Force:

Servo Moter

Operating Mode:

Touch Screen

Nature:

Automatic

Application:

Medical Product Assembly

Material:

Stainless Steel

Colour:

Stainless Steel Metallic Color

Operation Mode:

Touch Screen

Suitable Caps:

IV Bag Spike Ports And Injection Ports

Type:

Automatic

Voltage:

220V

Country Of Origin:

China

Packaging Details:

Wooden case

Highlight:

Injection Ports Assembly Machine

Automatic Assembly Machine

IV bag Spike Ports Assembly Machine

Product Description

Features

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
