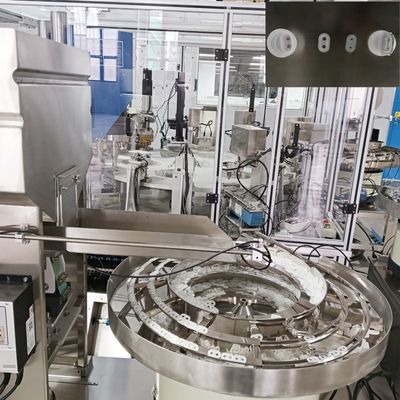

Euro Cap Assembly Machine for Automatic Assembly of Easy Peel Foil Caps for IV Infusion Soft Bags and Bottles

Brand Name:	Sencan
Model Number:	SC-2025
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Configuration:

Flim Cap Assembly Machine

Control System:

PLC

Accuracy:

High

Operating Method:

Turntable/mechanical

Packing:

Ooden Case

Power Supply:

220V/50Hz

Suitable Caps:

Euro Caps

Power Source:

AC380V,50Hz,4kw/hr

Packaging Details:

wooden case

Highlight:

Euro cap assembly machine for IV bags

Automatic easy peel foil cap machine

Euro cap assembly machine with warranty

Product Description

Features

1. mainly used for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles

2. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. Foil being cut and welded on machine automatically .

6. Each assemble process is followed with check function to ensure that there are no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.

10. Highly customized according to customer's product specifications, actual capacity and production demand.

Properties

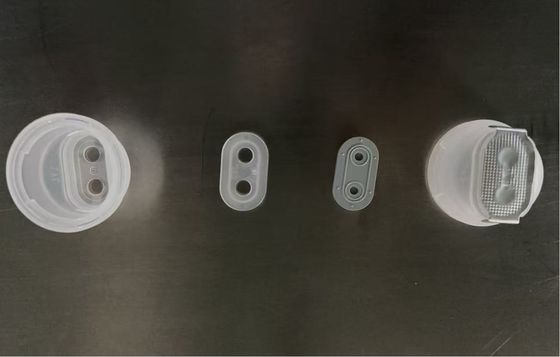

Applicable products	Peel seal foil caps, foil seal closures and lids
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
