Pump Head Assembly Machine Of Controlled By PLC System And Touch Screen Operation

Brand Name:	SENCAN
Model Number:	SC-TP-618
MOQ:	1 set
Price:	Negotiate based on the actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Type:

Assembly Machine

Durability:

Long-lasting

Packaging Type:

Wooden Case

Main Material:

Stainless Steel

Product Capacity:

4000-12000 Caps Per Hour

Operating Speed:

Adjustable

Operating Rate:

96%

Operating Interface:

Touch Screen

Power Consumption:

5KW

Advantage:

Both Sizes Can Be Assembled Together

Power Supply:

220V/50Hz

Assembly Capacity:

Large Capacity

Application:

Lotion Pump Liquid Trigger Sprayer

Packaging Details:

Wooden case

Highlight:

Touch screen pump head assembly machine

PLC system pump head assembly machine

Product Description

Features

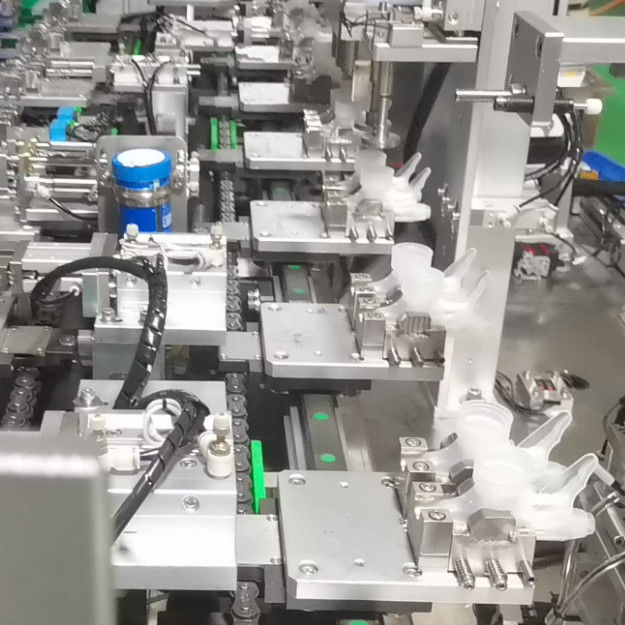

1. Linear sliding rail conveying system will be applied and driven by servo motor to make intermittent movement, fixtures will be in a static state during assembly with precise positioning devices. Each workstation is equipped with a secondary positioning to improve qualified rate of product.

2. Manipulators of each station are independent, simple and easy for daily maintenance.

3. Manipulators are powered by cylinders, shorter time for spare parts change, simpler for debugging and maintenance.

4. The tube insertion process will be silicone oiled automatically, oil storage is 4L.

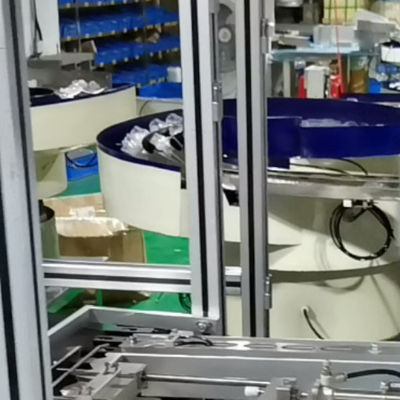

5. Enclosure for feeding plate can be equipped to reduce noise during production.

6. Each assembly process is followed by detection to ensure there will be no defective products in qualified products.

7. Whole equipment controlled by PLC system and touch screen operation.

Properties

Applicable products	lotion pump shampoo pump water sprayer trigger sprayer perfume pump spray nozzle
Production speed	1500-2500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
