Non-standard Automated Heli Cap Assembly Machine Long Service Life

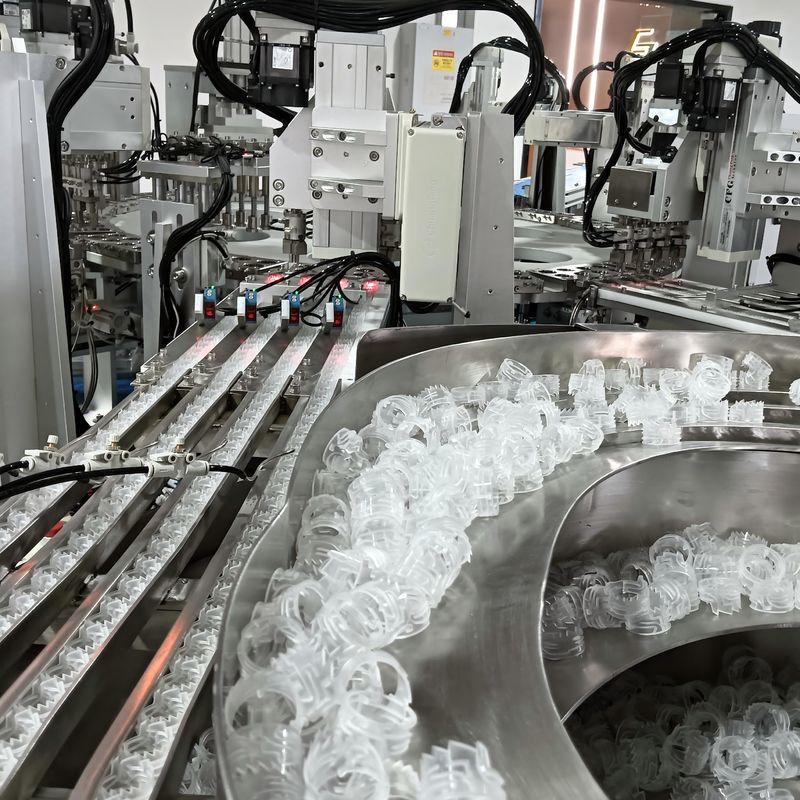

Large Image : Non-standard Automated Heli Cap Assembly Machine Long Service Life

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-2025

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate according to the actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets per month

Contact Now

Detailed Product Description

Product Capacity:	3000-12000 Caps Per Hour	Material:	Stainless Steel
Power Source:	AC380V,50Hz,4kw/hr	Main Power:	Servo Motor
Operation Type:	Index Motion	Control:	PLC
Highlight:	Non Standard Heli Cap Assembly Machine , Automated Heli Cap Assembly Machine

Features

1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Automatic pressing or tightening can be realized according to the product structure.
7. PLC control system, touch screen human-machine interface operation.
8. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.

Properties

Applicable products	Helicap, 3 parts caps requiring orientation and screwing assembly
Production speed	3000-12000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%(depends on raw material quality)
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2850kg
Operator	1set/person
