PLC Automatic Euro Cap Assembly Machine With Touch Screen

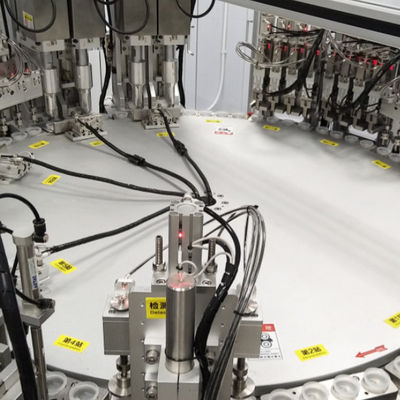

Large Image : PLC Automatic Euro Cap Assembly Machine With Touch Screen

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-629

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate the price based on actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Material:	Stainless Steel	Satisfactory Rate:	Above 99%
Function:	Assembly Of Medical Cap Products	Control:	PLC
Suitable Caps:	Euro Caps	Product Brand:	Euro
Air Consumption:	0.5 M³/min	Assembly Speed:	250 Caps Per Minute
Air Pressure:	0.6 MPa	Assembly Type:	Automatic
Operation Interface:	Touch Screen	Active Force:	Servo Moter
Main Drive:	Servo Motor And Indexing Disc	Operation Mode:	Automatic
Highlight:	Automatic Euro Cap Assembly Machine , PLC Euro Cap Assembly Machine

Features

1. mainly used for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles

2. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. Foil being cut and welded on machine automatically .

6. Each assemble process is followed with check function to ensure that there are no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.

10. Highly customized according to customer's product specifications, actual capacity and production demand.

Properties

Applicable products	Peel seal foil caps, foil seal closures and lids
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
