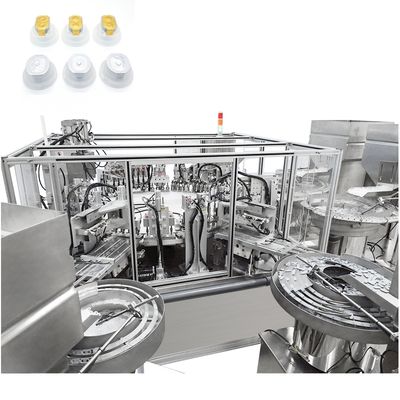

Automated Infusion Aluminum Foil Caps Assembly Machine For Easy To Peel Off Aluminum Foil And Excellent Welding Property IV Bottles Cap with Different Product Specifications and Production Demands

Large Image : Automated Infusion Aluminum Foil Caps Assembly Machine For Easy To Peel Off Aluminum Foil And Excellent Welding Property IV Bottles Cap with Different Product Specifications and Production Demands

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT25

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Configuration:	Infusion Flim Cap Assembly Machine	Capacity:	According To Customer's Requirement
Power Source:	AC380V,50Hz,4kw/hr	Packing:	Wooden Case
Power Supply:	220V/50Hz	Suitable Caps:	Euro Caps
Qualified Rate:	99%

Features

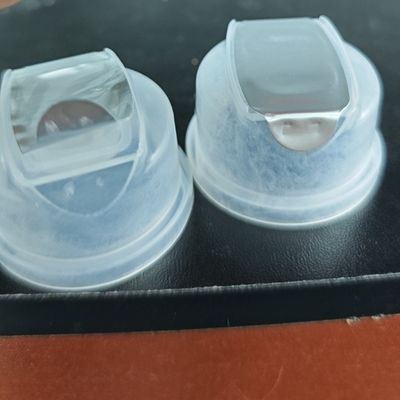

1. Mainly used for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles

2. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. Foil being cut and welded on machine automatically .

6. Each assemble process is followed with check function to ensure that there are no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.

10. Highly customized according to customer's product specifications, actual capacity and production demand.

Properties

Applicable products	Peel seal foil caps, foil seal closures and lids,Film cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
