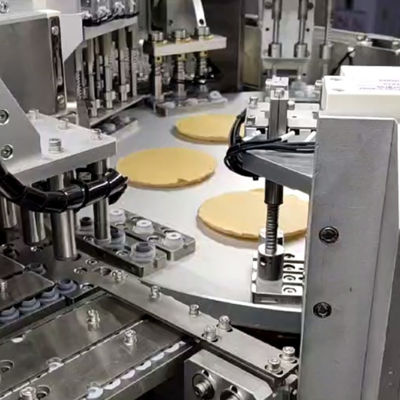

IV bag Spike Ports and Injection Ports Assembly Machine

Large Image : IV bag Spike Ports and Injection Ports Assembly Machine

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-639

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate the price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Safety Protection:	Emergency Stop Button	Suitable Caps:	Infusion Cap
Material:	Stainless Steel	Product Color:	Silver
Operating System:	PLC	Application:	Used In Manufacturing Industry
Main Material:	Stainless Steel	Applicable Products:	Medical Cap
Production Capacity:	5000-15000 Pieces Per Day	Feeding Method:	Vibrating Feeder
Assembly Type:	Fully Automatic	Automation Grade:	Automatic
Production Efficiency:	99%	Qualified Rate:	98%
Product Type:	Assembly Machine

Features

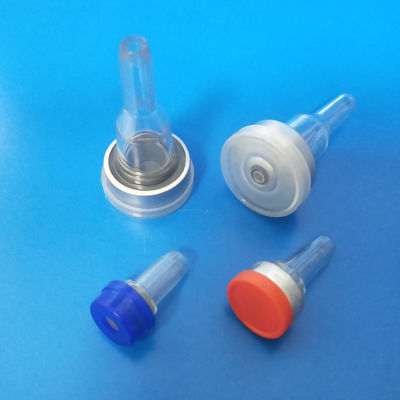

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
