IV Bag Spike Ports And Injection Ports Assembly Machine And High-Speed Production

Brand Name:	SENCAN
Model Number:	SC-TP-641
MOQ:	1 set
Price:	Negotiate the price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Mechanism:

Servo

Type:

Turntable

Cap Type:

All Medical Need Assembly Products

Operating Interface:

Touch Screen

Power Source:

Electric

Assembly Capacity:

Large Capacity

Dimensions:

Customizable

Feeding Method:

Vibrating Plate

Power Supply:

380V , 50HZ

Safety Features:

Emergency Stop Button, Safety Guarding

Application:

Medical Product Assembly

Applicable Product:

Infusion Cap

Certifications:

CE, ISO9001

Packaging Details:

Wooden case

Highlight:

Injection Ports Assembly Machine

IV Bag Spike Ports Assembly Machine

High Speed Spike Ports Assembly Machine

Product Description

Features

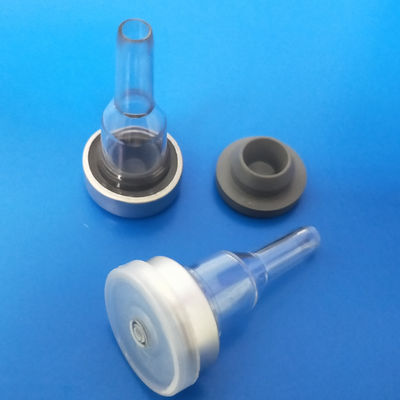

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
