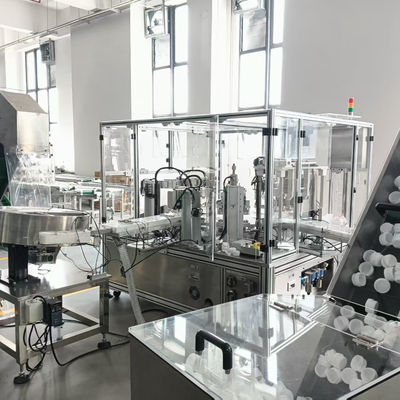

Emergency Stop Button Washing Liquid Screwing Machine Sliver Color

Large Image : Emergency Stop Button Washing Liquid Screwing Machine Sliver Color

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE,ISO9001
Model Number:	SC-TP-645

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate the price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Screwing Speed:	Adjustable	Application:	Washing Liquid
Voltage:	380V	Working Air Pressure:	0.4-0.6MPa
Host Machine Weight:	450kg	Quality Ratio:	More Than 98%
Capacity:	4500-12000 Bottles/min	Power Supply Voltage:	AC380V 50/60Hz
Air Pressure:	0.4-0.6MPa	Safety Features:	Emergency Stop Button
Suitable Product:	Screw Cap
Highlight:	sliver Color Washing Liquid Screwing Machine , Emergency Stop Washing Liquid Screwing Machine

Features

1. Customize rotary or loop type machine for customer’s capacity requirements.

2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.

3. Screw in place precisely, no twist angle and twist broken occur.

4. Does not destroy appearance of product, high qualified rate performed.

5. Option screw force detector for torque requirements.

6. Detection after each assembly process, 100% real qualified products.

7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.

8. PLC control system, touch screen HMI operation.

9. Simple maintenance easy operation. No high technical requirement for Operator.

10. Easy maintenance of spare parts, short time replacement.

Properties

Applicable products	Parts require scew fasten assembling
Production speed	2500-10000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depend on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 3kw/hr
Dimension	Varied with different product and output
Weight	About 1500kg
Operator	1set/person
