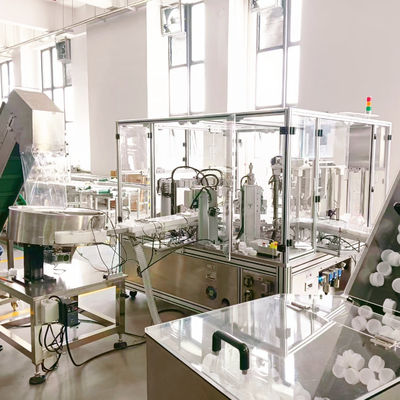

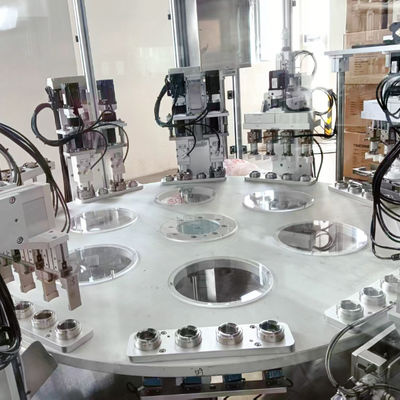

Washing liquid cap assembly of PLC control system and touch screen HMI operation.

Large Image : Washing liquid cap assembly of PLC control system and touch screen HMI operation.

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-671

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation the price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Control:	PLC	Efficiency Ratio:	Above 95%
Customization:	Available	Operation:	Automatic
Durability:	Long-lasting	Configuration:	Heli Cap Assembly Machine
Cable Size:	Three-phase Five-wire System	Operating System:	PLC
Error Alarm System:	Audible And Visual Alarm	Advantage:	Both Sizes Can Be Assembled Together
Operating Rate:	98%	Operation Type:	Turntable
Working Pressure:	0.5-0.8MPa	Safety Protection:	Emergency Stop Button

Features

1. Customize rotary or loop type machine for customer’s capacity requirements.

2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.

3. Screw in place precisely, no twist angle and twist broken occur.

4. Does not destroy appearance of product, high qualified rate performed.

5. Option screw force detector for torque requirements.

6. Detection after each assembly process, 100% real qualified products.

7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.

8. PLC control system, touch screen HMI operation.

9. Simple maintenance easy operation. No high technical requirement for Operator.

10. Easy maintenance of spare parts, short time replacement.

Properties

Applicable products	Washinnf liquid cap
Production speed	2500-10000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depend on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 3kw/hr
Dimension	Varied with different product and output
Weight	About 1500kg
Operator	1set/person
