Surgical Knife Assembly Machine

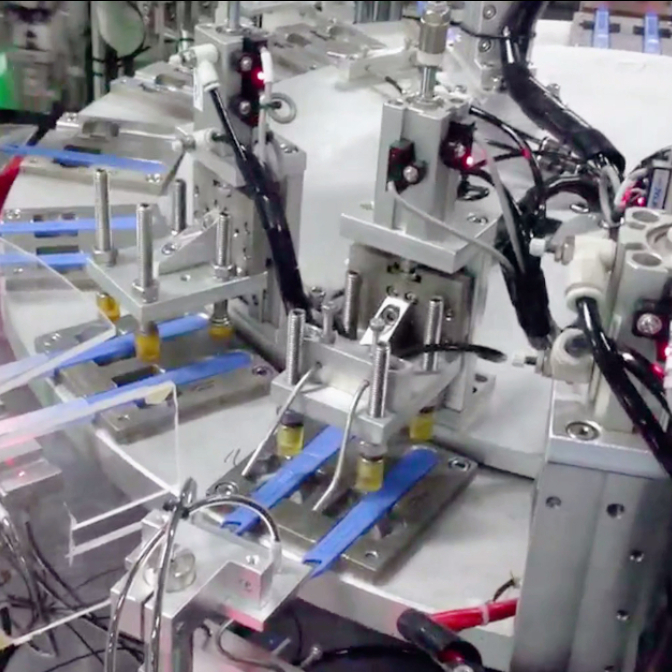

Large Image : Surgical Knife Assembly Machine

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-692

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate the price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Features:	High Efficiency, Precise Assembly	Certifications:	ISO 9001, CE
Material:	Stainless Steel	Warranty:	1 Year
Assembly Types:	Surgical Knife Assembly Machine	Country Of Origin:	China
Active Force:	Servo Moter	Link:	Automatic Assembly Production Line
Frequency:	50Hz	Product Model:	Need To Screw Caps And Packing
Function:	Automatically Assemble Medical Products	Applicable Products:	Medical Cap
Operating Interface:	Touch Screen

Features

1. Used for automatic assembly and packaging of disposable scalpel and surgical knife.

2. Main power servo motor + indexing drive, which provide accurate assembly position and high quality accuracy.

3. Blade feeding with vacuum adsorption to reduce wearing of blade during processing.

4. Knife handle pad breaks automatically on machine, then assembled by welding.

5. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.

6. Automatic counting function for production statistics.

7. Good and reject products exit independently for 100% qualified products with no defects.

8. PLC control system, touch screen HMI display, errors of reason and location can be accurately displayed.

Properties

Applicable products	Disposable surgical knife, scalpel(blade,handle,sleeve)
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 98%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2800kg
Operator	1set/person
