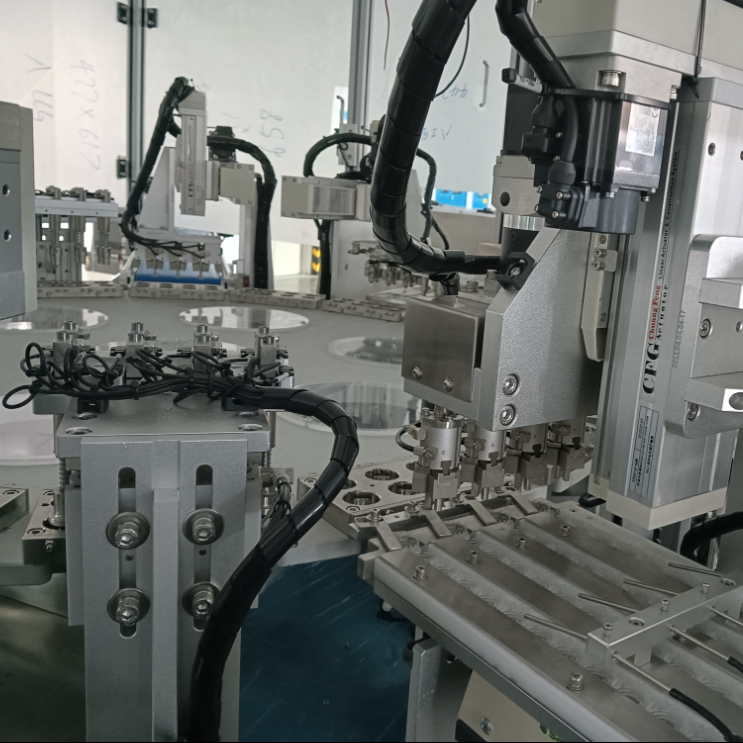

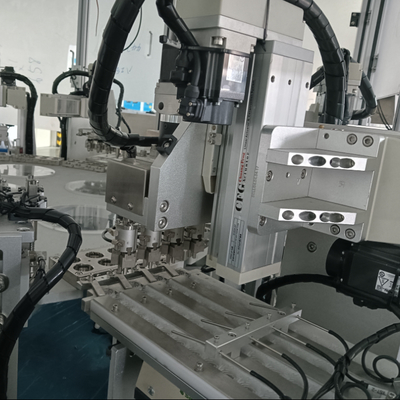

Heli cap assembly machine with height speed production

Brand Name:	SENCAN
Model Number:	SC-TP-705
MOQ:	1 set
Price:	Negotiate the price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Material:

Metal

Type:

Assembly Machine

Operating Rate:

96%

Warranty Period:

1 Year

Dimension:

1200mm X 800mm X 2000mm

Power Source:

AC380V,50Hz,4kw/hr

Control System:

PLC

Warranty:

1 Year

Control:

PLC

Application:

Bottling And Packaging Industries

Operating Interface:

Touch Screen

Qualified Rate:

99%

Usage:

Cap Assembly

Suitable Cap Types:

Heli Cap, Milk Cap

Packaging Details:

Wooden case

Highlight:

heli cap assembly machine high speed

heli cap assembly machine with warranty

heli cap assembly production equipment

Product Description

Features

1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.

Properties

Applicable products: Helicap, 3 parts caps closures requiring orientation and screwing assembly

Production speed: 3000-12000pcs/hr (according to customer’s requirement)

Rate of qualified product: Above 99%(depends on raw material quality)

Rate of operation rate: Above 95%

Power source: AC380V, 50Hz, 4kw/hr

Dimension: Actual size varied with different production speed

Weight: About 2850kg

Operator: 1set/person

Properties

Applicable products	Helicap, 3 parts caps requiring orientation and screwing assembly
Production speed	3000-12000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%(depends on raw material quality)
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2850kg
Operator	1set/person
