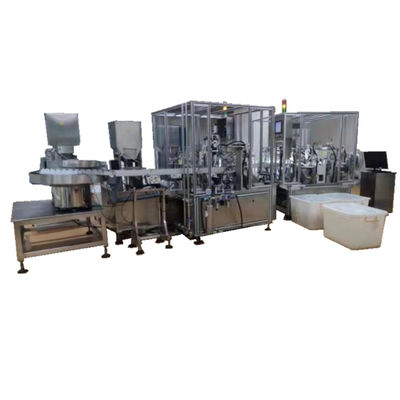

Automatic Medical Product Assembly Machine with PLC Control

Brand Name:	SENCAN
Model Number:	SC-TP-719
MOQ:	1 set
Price:	Negotiate the price according to customer actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3 - 20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Features:

High Efficiency, Precise Assembly

Qualified Product Rate:

Above 99%

Link:

Automatic Assembly Production Line

Operating System:

PLC

Production Efficiency:

98%

Operator:

1 Set/person

Operating Mode:

Touch Screen

Application:

Medical Product Assembly

Driver:

Servo Motor + Indexing Drive

Nature:

Automatic

Active Force:

Servo Moter

Country Of Origin:

China

Operating Environment:

Clean Room

Packaging Details:

Wooden case

Highlight:

PLC control medical assembly machine

automatic medical product assembler

medical equipment assembly machine with PLC

Product Description

Maximize Your Production with Our High-Performance Medical Product Assembly Machine

Key Specifications

Attribute	Value
Qualified Product Rate	Above 99%
Link	Automatic assembly production line
Operating System	PLC
Production Efficiency	98%
Features	High efficiency, precise assembly
Operator	1 set/person
Operating Mode	Touch screen
Application	Medical Product Assembly
Driver	Servo motor + indexing drive
Nature	Automatic
Active Force	Servo motor
Country Of Origin	China
Operating Environment	Clean Room

Advanced Features

Designed for automatic assembly of multi-component products with complex assembly requirements, including drug mixer caps for IV infusion bags and dispensing needles
Comprehensive processing capabilities: needle placement, ultrasonic welding, assembly, foil cutting, and sealing
Constructed with premium stainless steel and aluminum alloy materials, compliant with ISO and GMP standards
Independent driving source for each workstation simplifies maintenance procedures
Product-contact surfaces are precision-polished for optimal product protection
Automated foil cutting and sealing system
Integrated inspection function after each assembly process ensures defect-free production
User-friendly PLC control system with HMI operation requires minimal operator training
High-precision servo motor and indexing drive system delivers exceptional assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications, production capacities, and operational demands

Technical Properties

Applicable products	Multi-component products, infusion dispensing needle ports
Production speed	1000-1100pcs/hr/head
Rate of qualified product	Above 98% (depends on semi-finished product quality)
Rate of operation	Above 95%
Power source	AC380V, 50Hz, 5kw/hr; Compressed air: 7kg/m³
Dimension	L5815 × W2600 × H1900 (mm)
Weight	2300kg
Operator	1 set/person
