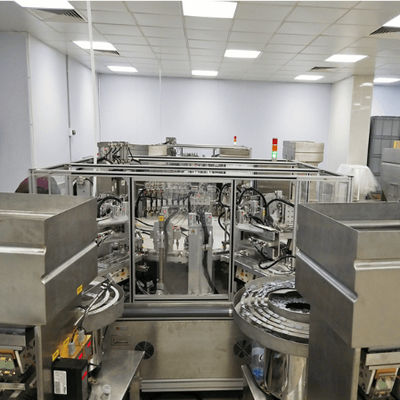

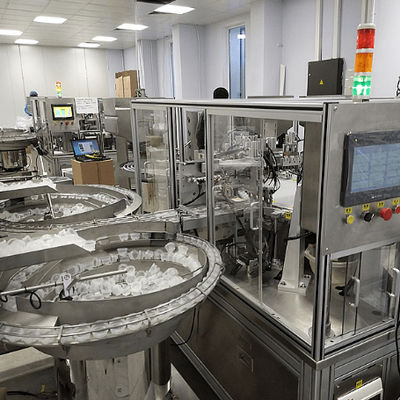

Euro Cap Assembly Machine for Medical Bottles - Servo Mechanism

Brand Name:	SENCAN
Model Number:	SC-TP-720
MOQ:	1 set
Price:	Negotiate the price according to customer actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3- 20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Operation Rate:

95%

Mechanism:

Servo

Function:

Assembly Of Medical Cap Products

Cap Type:

Euro Cap

Bottle Type:

Glass Or Plastic Bottles

Accuracy:

High

Model:

Cap Assembly Machine

Application:

Cap Assembly

Product Size:

Large

Suitable Cap Types:

Euro Caps

Colour:

Stainless Steel Metallic Color

Power Supply:

220V/50Hz

Control:

PLC

Voltage:

380V

Packaging Details:

Wooden case

Highlight:

Euro cap assembly machine with servo mechanism

Medical bottle capping machine

Servo-driven Euro cap assembler

Product Description

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
