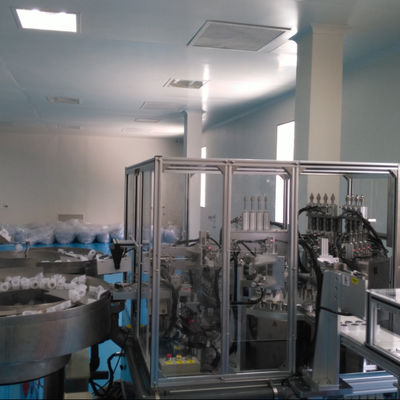

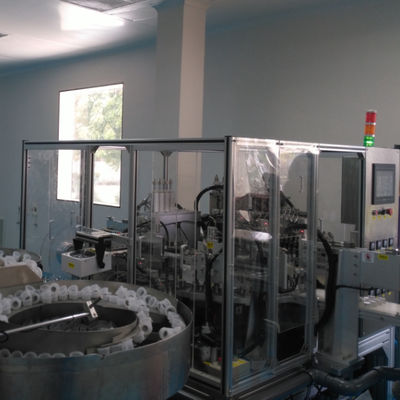

Automatic Euro Cap Assembly Machine for IV Infusion Bags

Brand Name:	SENCAN
Model Number:	SC-TP-721
MOQ:	1 set
Price:	Negotiate the price according to customer actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Configuration:

Infusion Flim Cap Assembly Machine

Operation Mode:

Automatic

Power Source:

AC380V,50Hz,4kw/hr

Infeed Type:

Vibration Disc

Suitable Caps:

Euro Caps

Product Type:

Assembly Machine

Air Pressure Gauge:

SMC

Operator:

Single

Capacity:

1200-15000 Caps Per Minute

Operation Interface:

Touch Screen

Operation Rate:

98%

Operating Mode:

Automatic

Voltage:

220V

Product Model:

Cap

Assembly Type:

Fully Automatic

Packaging Details:

Wooden case

Highlight:

Automatic Euro Cap assembly machine

IV infusion bag capping machine

Euro Cap assembly machine with warranty

Product Description

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
