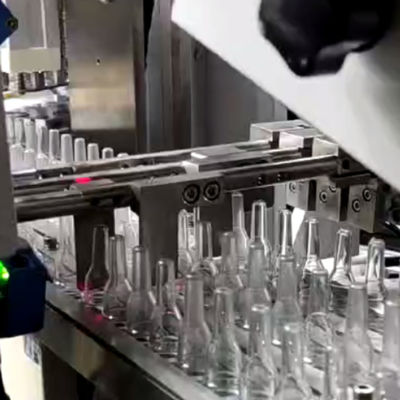

Automatic IV Bag Spike Ports Assembly Machine Stainless Steel

Brand Name:	SENCAN
Model Number:	SC-TP-725
MOQ:	1 set
Price:	Negotiate the price according to customer actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Features:

High Efficiency, Precise Assembly

Usage:

Medical Product Assembly

Product Color:

Silver

Product Model:

Medical Infusion Bottle Caps

Suitable Products:

Surgical Knife

Assembly Type:

Automatic

Power Consumption:

5kW

Maintenance:

Easy To Maintain

Production Efficiency:

98%

Weight:

500kg

Operating Rate:

98%

Mechanism:

Servo

Operation Type:

Turntable

Production Capacity:

4500-22000 Per/hour

Installation:

Easy To Install And Maintain

Packaging Details:

Wooden case

Highlight:

automatic IV bag spike machine

stainless steel assembly machine

medical port assembly equipment

Product Description

Features

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
