Fully Automated Medical Assembly Machine 500kg 220V/380V

Brand Name:	SENCAN
Model Number:	SC-TP-752
MOQ:	1 set
Price:	Negotiate the price according to customer actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Operation:

Automation

Accuracy:

High

Efficiency:

High

Certifications:

ISO 9001, CE

Precision:

High

Weight:

500kg

Power Supply:

220V/380V

Country Of Origin:

China

Power Source:

AC380V ,50Hz

Main Drive:

Servo Motor And Indexing Disc

Operating Environment:

Clean Room

Automation Level:

Fully Automated

Qualified Rate:

98%

Usage:

Medical Product Assembly

Packaging Details:

Wooden case

Highlight:

fully automated medical assembly machine

medical assembly machine 500kg

220V 380V medical assembly machine

Product Description

Features

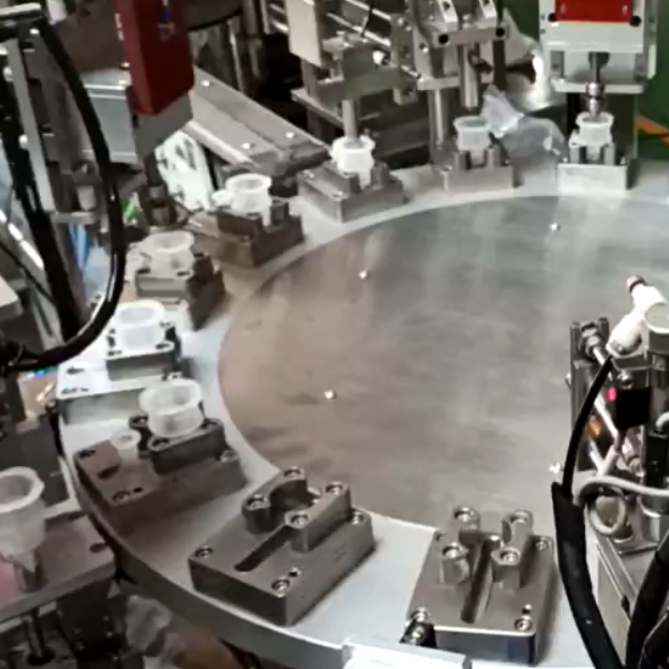

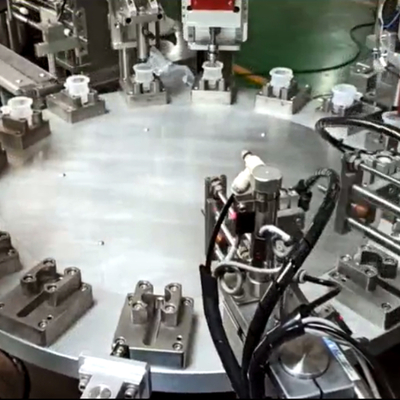

1. This machine is applied for automatic assembly of products of multi-piece, multi assembly technology requirement, like drug mixer cap for IV infusion bags, dispensing needles.

2. Including needle placement, ultrasonic welding, assembly, foil cut and sealing assembly processes.

3. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

4. Each workstation has independent driving source , convenient for daily maintenance.

5. The surface in contact with the product is polished to protect the product.

6. Protection foil being cut and sealed automatically.

7. Each assemble process is followed with inspection function to make sure there will be no defective products in qualified products.

8. PLC control system, HMI operation. Not high professional technical requirement for Operator.

9. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.

10. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.

11. Highly customized according to customer's product specifications, actual capacity and production demand.

Properties

Applicable products	Multi-component products, infusion dispensing needle ports
Production speed	1000-1100pcs/hr/head
Rate of qualified product	Above 98%(According to the quality of semi-finished products)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 5kw/hr; Compressed air:7kg/m3
Dimension	L5815×W2600×H1900(mm)
Weight	2300kg
Operator	1set/person
