Product Details:
Payment & Shipping Terms:
|
| Available Cap Type: | Pull Ring Cap | Capacity: | 4500-16000 Per/hour(according To Customer's Requirement0 |
|---|---|---|---|
| Name: | Single Pull Ring Cap Assembly Machine | Loading Type: | Vibration Disc |
| Control: | PLC | Power: | Determined According To The Voltage Of Each Country |
| Highlight: | single-pull ring cap assembly machine,customizable cap assembly machine,automated cap assembly machine with warranty |
||
Company profit
Sencan Automation Machinery Co., Ltd. is a professional manufacturer of non-standard customized machine, integrating design, manufacturing and sales. As the earliest non-PVC infusion cap assembly machine supplier in China, Sencan has been striving for innovation, focusing on customer needs and creating value for more than 10 years. Sencan continues to focus on the needs of users, research consumables overall assembly solution, has developed a number of special equipment. Sencan has a professional assembly after-sales service team to create high-quality solutions for users.
Main categories
1.Medical Device Assembly Machine
2.Drug Packaging Assembly Machine
3.Food Beverage Consumables Assembly Machine
4.Daily Use, Electronic&Metals Assembly Machine
5.General Machine
6.Cap Assembly Machine
7.Whole Solution Production Line
Features

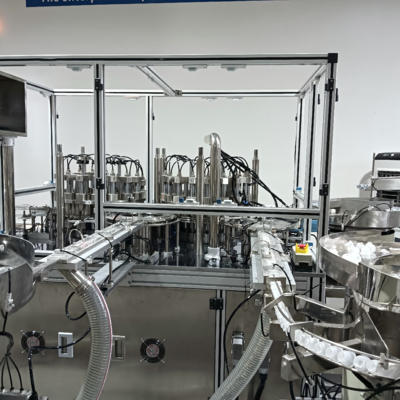

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.
2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards
3. Each workstation has independent driving source , convenient for daily maintenance.
4. The surface in contact with the product is polished to protect the product.
5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.
6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.
9. Pneumatic power for shorter time of maintenance
10. Highly customized according to customer's requirements, actual capacity and production demand.
Properties
| Applicable products | Single pull ring cap assembly machine |
| Production speed | 3600-14000pcs/hr (according to customer’s requirement) |
| Rate of qualified product | Above 99% |
| Rate of operation rate | Above 95% |
| Power source | AC380V,50Hz,4kw/hr |
| Dimension | Actual size varied with different production speed |
| Weight | About 2300kg |
| Operator | 3sets/2persons,recommend 1set/person |
