Product Details:
Payment & Shipping Terms:
|

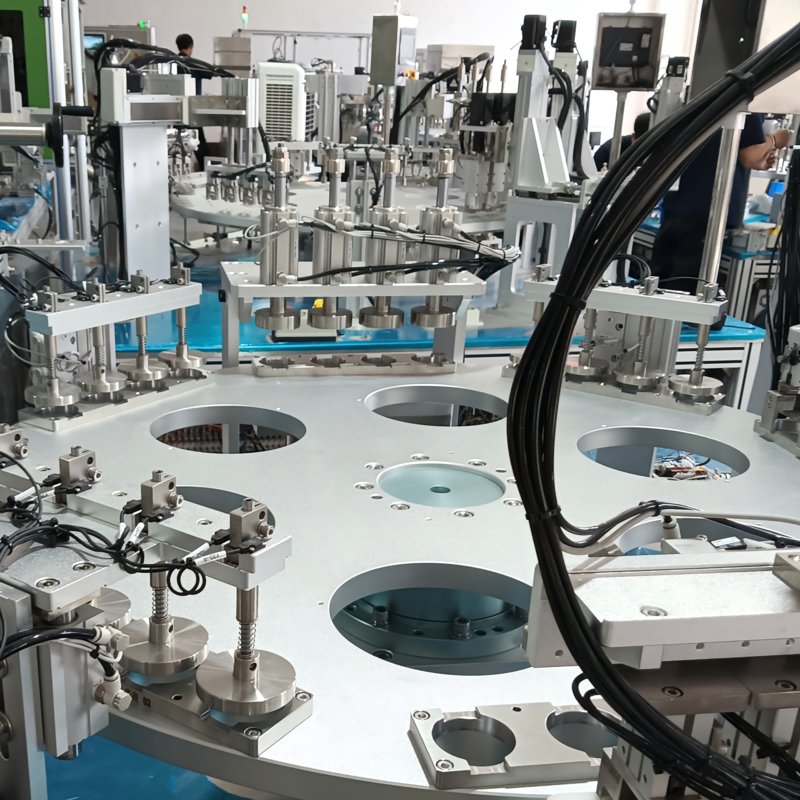

| Name: | Urine Cap Assembly Machine | Capacity: | 2500-7500pcs/h |
|---|---|---|---|
| Control: | PLC | Operation Person: | 1 Person |
| Operation: | HMI | Qualified Rate: | 99% |
| Highlight: | PLC-controlled urine cap machine,high-speed urine cap assembly,medical product assembly machine with warranty |
||
Sencan Automation Machinery Co., Ltd. is a professional manufacturer of non-standard customized machine, integrating design, manufacturing and sales. As the earliest non-PVC infusion cap assembly machine supplier in China, Sencan has been striving for innovation, focusing on customer needs and creating value for more than 10 years. Sencan continues to focus on the needs of users, research consumables overall assembly solution, has developed a number of special equipment. Sencan has a professional assembly after-sales service team to create high-quality solutions for users.
Features
1. Customize rotary or loop type machine for customer’s capacity requirements.
2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.
3. Screw in place precisely, no twist angle and twist broken occur.
4. Does not destroy appearance of product, high qualified rate performed.
5. Option screw force detector for torque requirements.
6. Detection after each assembly process, 100% real qualified products.
7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.
8. PLC control system, touch screen HMI operation.
9. Adopting full servo capping device, capping torque is set by touch screen.
Properties
| Applicable products | Urine Cup |
| Production speed | 2500-7500pcs/h |
| Rate of qualified product | Above 98% |
| Rate of operation rate | Above 95% |
| Power source | Depending on the country |
| Dimension | Actual size varied with production speed |
| Weight | About 800kg |
| Operator | 1set/person |
