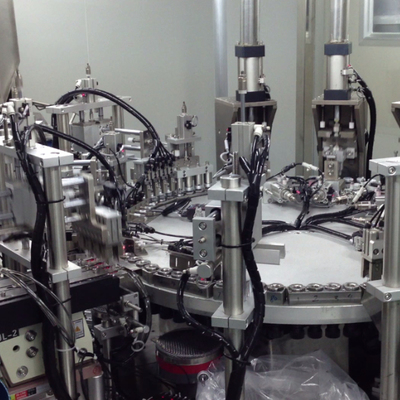

Automatic Euro Cap Assembly Machine with 4000-12000 Caps per Hour and 0.6-0.8MPa Air Pressure for High Efficiency

Brand Name:	SENCAN
Model Number:	SC-TP-787
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Automation Grade:

Automatic

Qualified Rate:

99%

Operation Interface:

Touch Screen

Operating Interface:

Touch Screen

Efficiency Ratio:

Above 95%

Control System:

PLC

Voltage:

220V

Air Pressure:

0.6-0.8MPa

Product Capacity:

4000-12000 Caps Per Hour

Operating Method:

Turntable/mechanical

Operating Speed:

Adjustable

Type:

Assembly Machine

Product Frequency:

50Hz

Frequency:

50Hz

Nature:

Automatic

Packaging Details:

Wooden case

Highlight:

4000-12000 caps per hour Euro Cap Assembly Machine

0.6-0.8MPa Air Pressure Cap Assembly Machine

Automatic Ultrasonic Welding Machine

Product Description

Features

1. For assembly caps and closures require ultrasonic welding.

2. All materials of the equipment are made of stainless steel + aluminum alloy, meet GMP requirements.

3. Main power servo motor + indexing drive, high precision and high qualified product rate.

4. Titanium alloy welding head, international supplier of ultrasonic welding device with high quality and very long service life.

5. International brand feeding vibrator with lower noise, smoother feeding and faster speed.

Properties

Applicable products	Multi-piece plastic caps and closures requiring ultrasonic welding
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
