| Production Capacity: | 1200-10000 Per/hour | Operation Type: | Turntable |
|---|---|---|---|
| Operation Mode: | Touch Screen | Type: | Automatic Assembly Machine |
| Certifications: | ISO 9001, CE | Suitable Product: | Pump Head Automated Assembly Machine |
| Packaging Type: | Wooden Case | Main Drive: | Servo Motor And Indexing Disc |
| Speed: | High | Material: | Stainless Steel |
| Feeding Method: | Vibrating Plate | Voltage: | 220V |
| Qualified Rate: | 99% | Maintenance: | Easy To Maintain |
| Highlight: | ISO 9001 Certified Medical Product Assembly Machine,220V Voltage IV Soft Bag Caps Welding Machine,99% Qualified Rate Automatic Assembly Machine |
||
Features

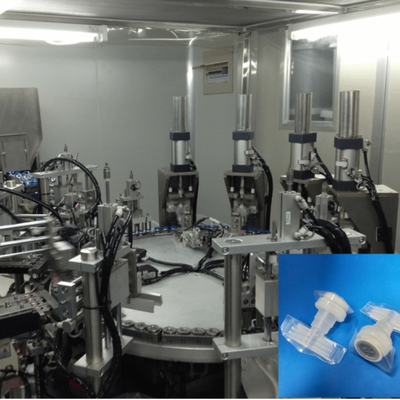

1. Automatic assembly of IV soft bag caps and ports welding machine .
2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.
3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.
4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
5. All driving and inspection systems made from outstanding international suppliers
6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
Properties
|
Applicable products |
Nasal swab, nasal collector, nasal sampler |
|
Production speed |
2500-8000pph |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz,5kw/h, air pressure 7kg/m3 |
|
dimension |
Actual size varied with production speed |
|
weight |
About 2850kg |
|
operator |
1set/person |
