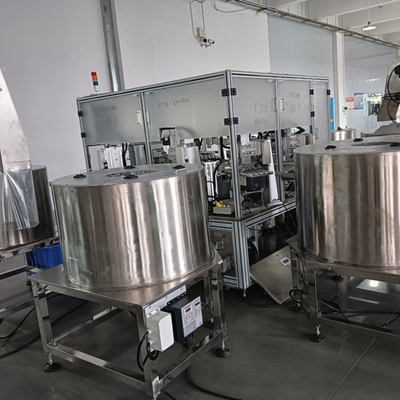

Automatic Heli Cap Assembly Machine with 98% Qualified Rate, 0.5m³/min Air Consumption and Automatic Detection

Brand Name:	SENCAN
Model Number:	SC-TP-792
MOQ:	1 set
Price:	Negotiate the price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Features:

High Efficiency, Easy To Operate

Warranty:

1 Year

Operation Interface:

Touch Screen

Qualified Rate:

98%

Power Source:

AC380V,50Hz,4kw/hr

Assembly Types:

Heli Cap

Operating Mode:

Automatic

Safety Features:

Multiple Safety Features

Air Consumption:

0.5m³/min

After-Sales Service:

Engineers Available To Service Machinery Overseas

Control System:

PLC

Assembly Capacity:

Large Capacity

Speed:

Adjustable

Packaging Details:

Wooden case

Highlight:

98% Qualified Rate Heli Cap Assembly Machine

0.5m³/min Air Consumption Automatic Assembly Machine

Automatic Detection Daily Necessities Assembly Machine

Product Description

Features

1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.

Properties

Applicable products: Helicap, 3 parts caps closures requiring orientation and screwing assembly

Production speed: 3000-12000pcs/hr (according to customer’s requirement)

Rate of qualified product: Above 99%(depends on raw material quality)

Rate of operation rate: Above 95%

Power source: AC380V, 50Hz, 4kw/hr

Dimension: Actual size varied with different production speed

Weight: About 2850kg

Operator: 1set/person
