Product Details:
Payment & Shipping Terms:
|
| Suitable Product: | Jelly Automated Assembly Machine | Product Color: | Silver |
|---|---|---|---|
| Product Certification: | CE, ISO | Active Force: | Servo Moter |
| Assembly Capacity: | Large Capacity | Material: | Stainless Steel |
| Operating System: | PLC | Maintenance: | Easy |
| Operating Interface: | Touch Screen | Operation Interface: | Touch Screen |
| Mechanism: | Servo | Assembly Objects: | Daily Necessities |
| Color: | Silver | Main Material: | Stainless Steel |
| Highlight: | GMP Compliant Jelly Cap Assembly Machine,High Qualified Rate Automatic Assembly Machine,Automatic Detection Daily Necessities Assembly Machine |
||

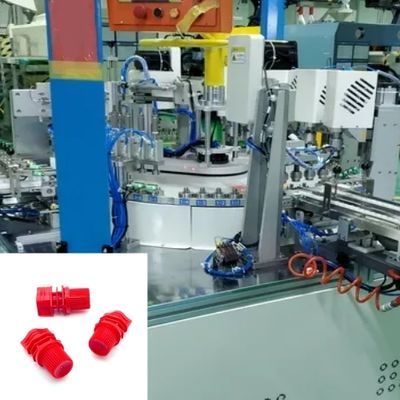

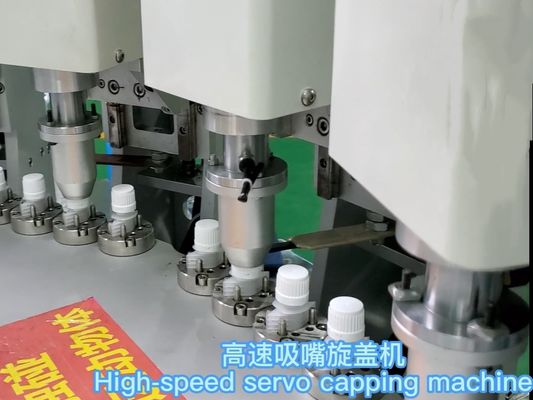

Features
1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.
Properties
|
Applicable products |

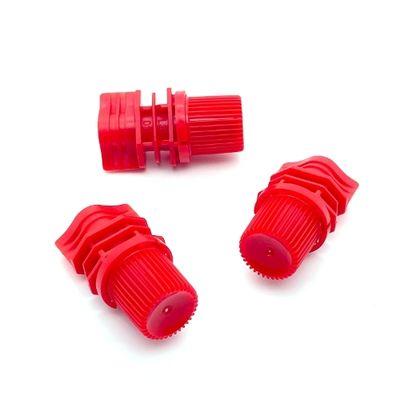

Helicap, 3 parts caps requiring orientation and screwing assembly |
|
Production speed |
3000-12000pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99%(depends on raw material quality) |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 2850kg |
|
Operator |
1set/person |
