| Power Source: | AC380V,50Hz,4kw/hr | Suitable Caps: | Euro-cap |
|---|---|---|---|
| Operating Speed: | Adjustable | Product Power: | 380V |
| Nature: | Automatic | Qualified Rate: | 98% |
| Air Pressure: | 0.6-0.8 MPa | Product Type: | Assembly Machine |
| Operation Interface: | Touch Screen | Control: | PLC |
| Accuracy: | High | Active Force: | Servo Motor Or Cylinder |
| Operation: | About 95% | ||
| Highlight: | High-Speed Euro Cap Assembly Machine,Touch Screen Operation Euro Cap Assembly Machine,Adjustable Speed Euro Cap Assembly Machine |
||
Features

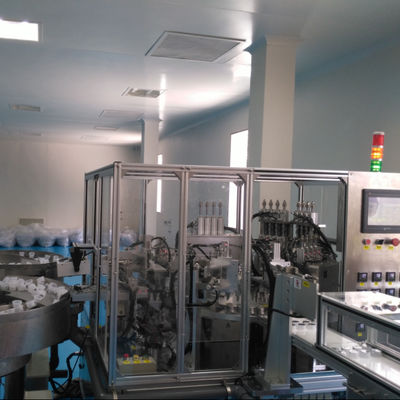

1. mainly used for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
2. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with GMP standards
3. Each workstation has independent driving source , convenient for daily maintenance.
4. The surface in contact with the product is polished to protect the product.
5. Foil being cut and welded on machine automatically .
6. Each assemble process is followed with check function to ensure that there are no defective products in qualified products.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
8. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.
9. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
10. Highly customized according to customer's product specifications, actual capacity and production demand.
Properties
|
Applicable products |
Peel seal foil caps, foil seal closures and lids |
|
Production speed |
1500-8500pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 2000kg |
|
Operator |
3sets/2persons,recommend 1set/person |
