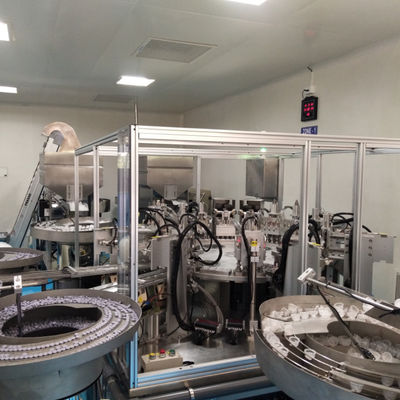

High-Speed Euro Cap Assembly Machine for Pharmaceutical Use with 14000 Caps per Hour and 10-30mm Cap Height Range

Brand Name:	SENCAN
Model Number:	SC-TP-792
MOQ:	1 set
Price:	Negotiate the price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3-20 set

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Features:

High Efficiency, Easy To Operate

Suitable Cap Types:

Double Fold Cap Film Cap Infusion Cap

Operating Interface:

Touch Screen

Colour:

Stainless Steel Metallic Color

Operating Rate:

96%

Cap Type:

Euro Cap

Operation Rate:

98%

Packing:

Wooden Case

Assembly Speed:

14000 Caps Per Hour

Product Capacity:

4000-12000 Caps Per Hour

Cap Height Range:

10-30mm

Power Consumption:

3.5kW

Assembly Capacity:

4500-12000 Per/hour

Production Efficiency:

High

Main Drive:

Servo Motor And Indexing Disc

Packaging Details:

Wooden case

Highlight:

14000 Caps per Hour Euro Cap Assembly Machine

10-30mm Cap Height Range Pharmaceutical Cap Assembly Machine

3.5kW Power Consumption Automatic Cap Assembly Machine

Product Description

Features

1. For assembly caps and closures require ultrasonic welding.

2. All materials of the equipment are made of stainless steel + aluminum alloy, meet GMP requirements.

3. Main power servo motor + indexing drive, high precision and high qualified product rate.

4. Titanium alloy welding head, international supplier of ultrasonic welding device with high quality and very long service life.

5. International brand feeding vibrator with lower noise, smoother feeding and faster speed.

Properties

Applicable products	Multi-piece plastic caps and closures requiring ultrasonic welding
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
