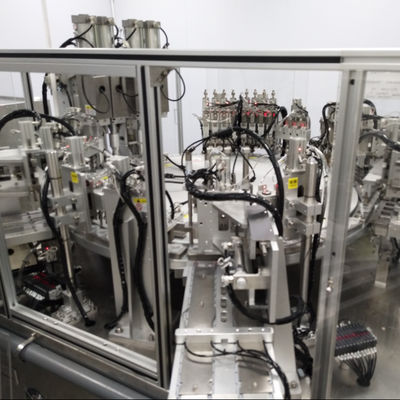

Euro Cap Assembly Machine with 1 Year Warranty 95% Operation Rate and 0.3m3/min Air Consumption for Infusion Cap Assembly

Brand Name:	SENCAN
Model Number:	SC-TP-796
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Advantage:

Flat Welding Surface Of Infusion Cap

Warranty Period:

1 Year

Product Size:

Large

Operation:

About 95%

Operation Person:

1 Person

Operator:

Single

Mechanism:

Servo

Cable Size:

Three-phase Five-wire System

Assembly Capacity:

4500-12000 Per/hour

Power Supply:

220V/50Hz

Air Consumption:

0.3m3/min

Drive:

Servo Motor

Product Power:

220V

Operating Rate:

96%

Product Capacity:

4000-12000 Caps Per Hour

Packaging Details:

Wooden case

Highlight:

1 year warranty euro cap assembly machine

95% operation rate infusion cap assembly machine

0.3m3/min air consumption automatic cap assembly machine

Product Description

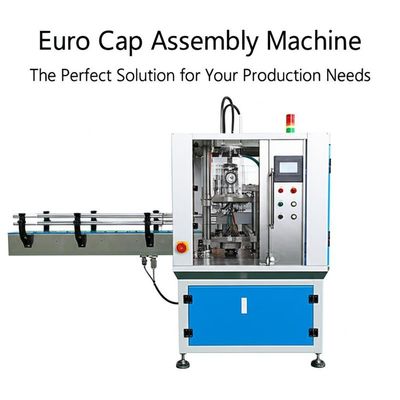

Euro Cap Assembly Machine - The Perfect Solution for Your Production Needs

Key Features

Designed for automatic assembly of caps for plastic IV infusion bags and bottles
Constructed with stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving source for each workstation, simplifying maintenance
Product-contact surfaces polished for product protection
Servo-linked rod structure ensures even, stable pressure for consistent cap pressing quality
Integrated inspection function after each assembly process to eliminate defects
User-friendly PLC control system with human-machine interface
Precision servo motor + indexing drive for high assembly accuracy
Pneumatic power system reduces maintenance time
Fully customizable to meet specific production requirements

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400pcs/hr (customizable)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
