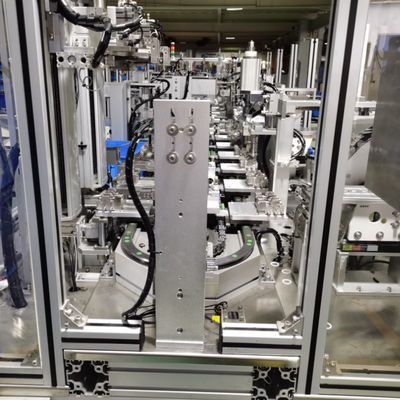

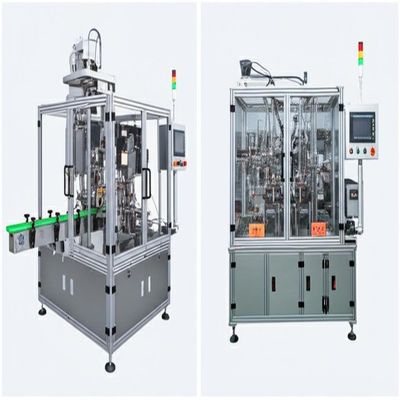

Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

Large Image : Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-798

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Contact Now

Detailed Product Description

Voltage:	220V	Maintenance:	Easy
Operation Interface:	Touch Screen	Feeding Method:	Vibrating Disc
Error Detection:	Automatic	Operation Method:	Touch Screen Control
Product Certification:	CE, ISO	Air Consumption:	0.5m³/min
Automation Level:	Fully Automated	Capacity:	According To Customer's Requirement
Highlight:	0.5m³/min Air Consumption Lotion Pump Assembly Machine , Above 95% Operation Rate Trigger Sprayer Assembly Machine , 4L Silicone Oil Storage Daily Necessities Assembly Machine

Lotion Pump Liquid Trigger Sprayer Assembly Machine and Precise Daily Necessities Assembly Machine for Consistent and Accurate Assembly

Key Features

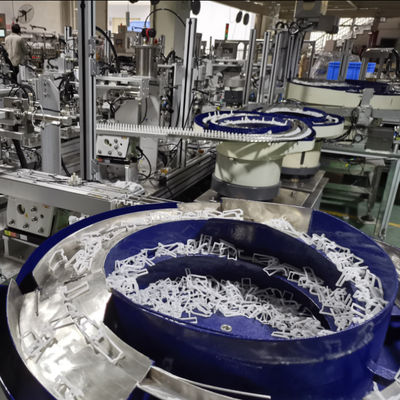

Linear sliding rail conveying system with servo motor drive for precise intermittent movement and static assembly positioning
Independent workstations with secondary positioning to achieve over 98% product qualification rate
Cylinder-powered manipulators for simplified maintenance and faster spare parts replacement
Automatic silicone oil application during tube insertion with 4L oil storage capacity
Optional enclosure for feeding plate to reduce operational noise
Integrated quality detection at each assembly stage to eliminate defective products
PLC control system with touch screen interface for easy operation

Technical Specifications

Applicable Products	Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed	1500-2500pcs/hr (customizable to customer requirements)
Product Qualification Rate	Above 98%
Operation Rate	Above 95%
Power Requirements	AC380V, 50Hz, 4kw/hr
Dimensions	Variable based on production speed requirements
Weight	Approximately 3000kg
Operator Requirement	1 person per machine
