High Efficiency Euro Cap Assembly Machine with 99% Qualified Rate 95% Operation Rate and Adjustable Speed

Brand Name:	SENCAN
Model Number:	SC-TP-816
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Applicable Product:

Infusion Cap

Speed:

Adjustable

Operation:

Touch Screen

Power Source:

AC380V,50Hz

Operating Rate:

96%

Packing:

Wooden Case

Nature:

Automatic

Operating Method:

Turntable

Model:

Cap Assembly Machine

Accuracy:

High

Operation Mode:

Automatic

Product Brand:

Euro

Packaging Details:

Wooden case

Highlight:

99% Qualified Rate Euro Cap Assembly Machine

95% Operation Rate Cap Assembly Machine

Adjustable Speed Infusion Cap Assembly Machine

Product Description

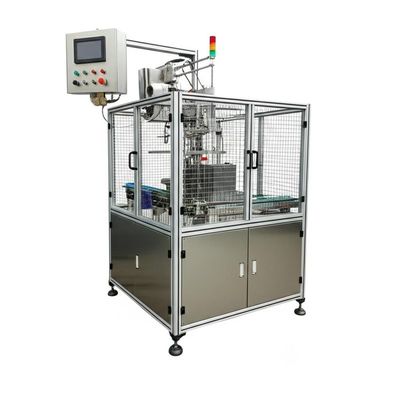

Euro Cap Assembly Machine

Enhance your production efficiency with this automated cap assembly solution for plastic IV infusion bags and bottles, designed for precision and reliability.

Key Features

Constructed from stainless steel + aluminum alloy, compliant with ISO and GMP standards
Automatic assembly of various cap types for IV infusion containers
Independent driving source at each workstation for easy maintenance
Product-contact surfaces polished for product protection
Servo-linked rod structure ensures even, stable pressure for consistent cap quality
Integrated inspection function after each assembly process for defect prevention
PLC control system with user-friendly HMI interface
Servo motor + indexing drive for high assembly precision
Pneumatic power system reduces maintenance downtime
Fully customizable to meet specific production requirements

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400pcs/hr (customizable)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies with production speed
Weight	Approximately 2300kg
Operator Requirement	3 sets/2 persons (recommended 1 set/person)
