High-Speed Euro Cap Assembly Machine with 14000 Caps per Hour 95% Operation Rate and AC380V Power Source

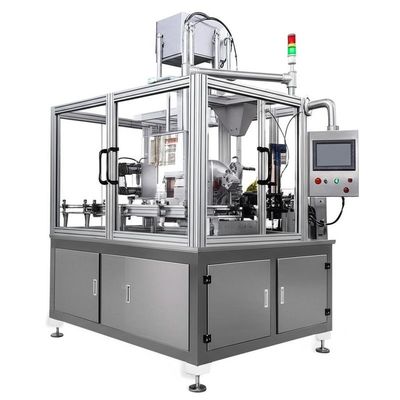

Large Image : High-Speed Euro Cap Assembly Machine with 14000 Caps per Hour 95% Operation Rate and AC380V Power Source

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-819

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Contact Now

Detailed Product Description

Control:	PLC	Operating Rate:	96%
Operation Type:	Turetable/mechanical	Product Material:	Metal
Product Brand:	Euro	Power Source:	AC380V,50Hz
Warranty Period:	1 Year	Active Force:	Servo Motor Or Cylinder
Operating Mode:	Automatic	Model:	Cap Assembly Machine
Assembly Speed:	14000 Caps Per Hour
Highlight:	14000 caps per hour Euro Cap Assembly Machine , 95% Operation Rate Cap Assembly Machine , AC380V Power Source Infusion Cap Assembly Machine

High-Performance Euro Cap Assembly Machine for Consistent Output

Product Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished for optimal product protection
Automatic foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defects
PLC control system with user-friendly human-machine interface operation
Servo motor + indexing drive power system for high assembly precision and qualification rates
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
