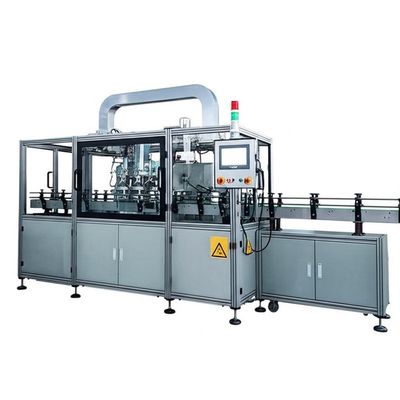

High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

Brand Name:	SENCAN
Model Number:	SC-TP-821
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Operation Tyre:

Turntable

Applicable Caps:

Euro Caps

Product Size:

Large

Accuracy:

High

Product Type:

Assembly Machine

Colour:

Stainless Steel Metallic Color

Operating Interface:

Touch Screen

Warranty:

1 Year

Production Capacity:

4500-16000 Per/hour

Power Supply:

220V/50Hz

Air Pressure:

0.6-0.8MPa

Configuration:

Infusion Flim Cap Assembly Machine

Product Model:

Medical Infusion Caps

Product Brand:

Euro

Voltage:

220V

Packaging Details:

Wooden case

Highlight:

99% Qualified Rate Euro Cap Assembly Machine

95% Operation Rate Euro Cap Assembly Machine

220V/50Hz Euro Cap Assembly Machine

Product Description

Customizable Euro Cap Assembly Machine

A precision-engineered solution for automatic assembly of peel seal foil caps, designed to meet your specific production requirements while maintaining high quality standards.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel + aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for optimal product protection
Automated foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defective products
User-friendly PLC control system with human-machine interface, requiring minimal operator training
High-precision servo motor + indexing drive system ensures superior assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to match your product specifications, capacity needs, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
