High Accuracy Safety Lancet Production Line with Automatic Safety Lock and High Productivity for Medical Injection Molding

Brand Name:	SENCAN
Model Number:	SC-TP-814
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Operation Mode:

Semi-automatic

Voltage:

220V-380V

Control System:

PLC Control

Product Type:

Medical Equipment

Packing:

Wooden Case

Accuracy:

High

Type:

Index Motin

Control:

PLC

Production Process:

Automatic Assembly

Packaging Type:

Wooden Case

Power Supply:

220V/50Hz

Safety Features:

Automatic Safety Lock

Packaging Details:

Wooden case

Highlight:

Product Description

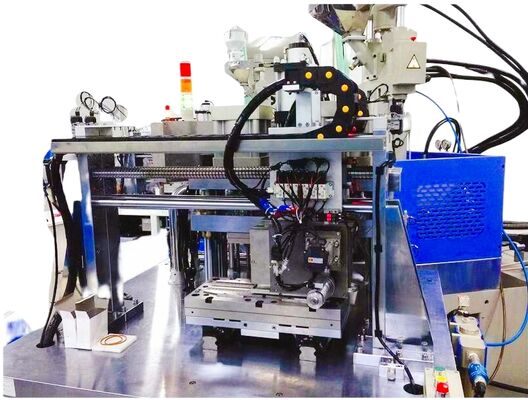

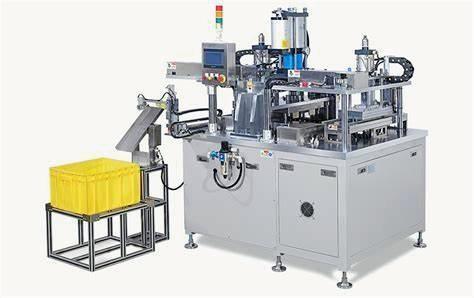

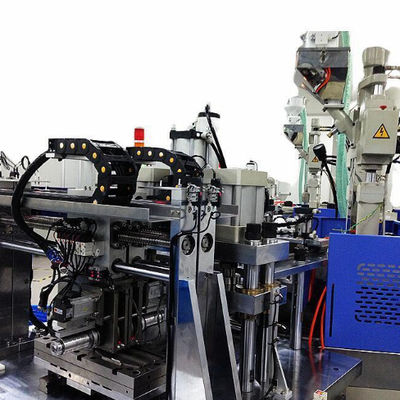

State-of-the-Art Safety Lancet Production Line

High-performance manufacturing solution for precision needle-based medical products with exceptional efficiency and reliability.

Key Features

Specialized for pick-and-place and injection molding of needle products including blood lancets and blood collection needles
Dual needle hoppers with 200,000-needle capacity enabling continuous 24-hour production
Inclined angle assembly prevents needle tip damage during production
Integrated binding and tightening system maintains needle organization in hoppers
Quick-load hopper design allows full reloading in under 3 minutes
10-15 second production cycle delivers high output with stable performance
Patented needle adsorption system (non-vacuum) reduces energy consumption
Fully customizable to match specific production requirements and capacities

Technical Specifications

Applicable Products	Peripheral blood lancets, venous blood collection needles, and other needle-based injection molded products
Production Speed	Variable based on molding cavity quantity
Product Qualification Rate	Above 99%
Operational Rate	Above 97%
Power Requirements	AC380V, 50Hz, 4kW/hour
Dimensions	L1950 * W1250 * H1900mm (actual size may vary)
Weight	Approximately 2800kg
Operator Requirement	1 person per machine
