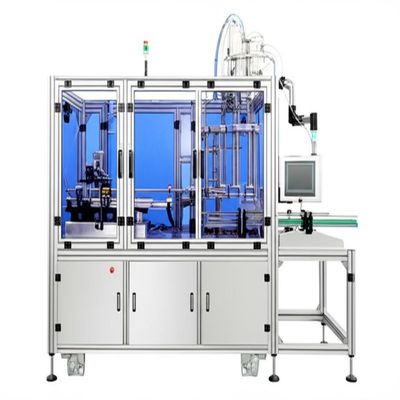

Fully Automatic IV Bag Spike Ports Assembly Machine with 99% Qualified Rate and 8000-15000pcs/hr Speed

Brand Name:	SENCAN
Model Number:	SC-TP-825
MOQ:	1set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Features:

High Efficiency, Easy To Operate

Frequency:

50Hz

Manipulator:

Self-made

Assembly Type:

Fully Automatic

Voltage:

220V

Speed:

High Speed

Cap Type:

All Medical Need Assembly Products

Assembly Method:

Rotary Indexing

Active Force:

Servo Motor Or Cylinder

Packing:

Wooden Case

Operation Method:

Touch Screen Control

Capacity:

100 Units Per Minute

Automation Grade:

Automatic

Operator:

1 Set/person

Packaging Details:

Wooden case

Highlight:

99% Qualified Rate IV Bag Spike Ports Assembly Machine

8000-15000pcs/hr Injection Ports Assembly Machine

220V Voltage Medical Product Assembly Machine

Product Description

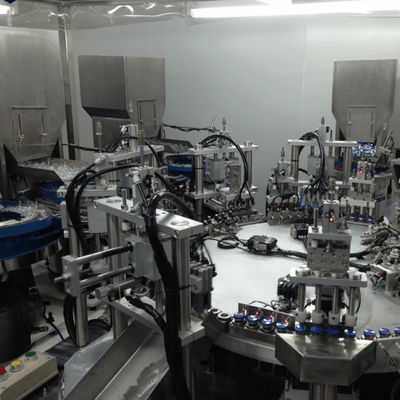

IV Bag Spike Ports and Injection Ports Assembly Machine

Product Features

Automatically assembles spike ports and injection ports for non-PVC double tube soft bags, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs
Constructed with stainless steel and aluminum alloy materials, compliant with ISO and GMP pharmaceutical packaging standards
Titanium alloy aluminum plastic cap sealing material with mirror-polished surface ensures smooth, high-quality seals
Gear-driven sealing knife rotation with individual cap sealing for high qualification rates
Each workstation includes detection systems to verify assembly accuracy
Servo motor and indexing drive power system enables high-precision assembly
PLC control system with touch screen HMI for operation

Technical Specifications

Applicable Products	Aluminum-plastic caps & ports PC ports, spike ports and injection ports for non-PVC soft tube IV bags
Production Speed	8,000-15,000 pieces/hour (customizable)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hour
Dimensions	L3500 × W3400 × H1800 (mm) - Actual size varies with production speed
Weight	Approximately 3000kg
Operator Requirement	1 person per machine
