PLC Controlled Safety Lancet Production Line with 99% Qualified Rate and Customizable Parameters for Blood Lancet Manufacturing

Brand Name:	SENCAN
Model Number:	SC-TP-837
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Applicable Product:

Trigger Needle

Power Supply:

AC 220V/50Hz

Controlsystem:

PLC Control With Touch Screen Interface

Qualified Product Rate:

Above 99%

Needle Length:

Various Lengths Available

Productname:

Safety Lancet Production Line

Material:

Stainless Steel

Feeding Method:

Vibrating Plate

Safetyfeatures:

Emergency Stop, Safety Guards, Overload Protection

Country Of Origin:

China

Applicable Products:

Blood Lancet Needle

Weight:

Approximately 1500 Kg

Operation Rate:

96%

Packaging Details:

Wooden case

Highlight:

PLC control Safety Lancet Production Line

99% qualified Blood Lancet Manufacturing Machine

Customizable parameters Lancet Production Machine

Product Description

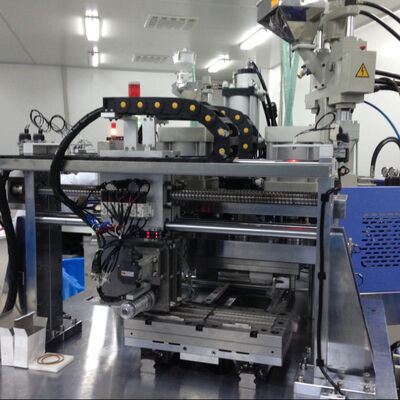

Safety Lancet Production Line

Advanced automated production system capable of manufacturing various lancet sizes and types with fully customizable production parameters for medical device manufacturing.

Key Features

Specialized for pick-and-place and injection molding of needle-based products including blood lancets and blood collection needles
Dual needle hopper system with 200,000 needle storage capacity supporting 24-hour continuous production
Inclined assembly angle design prevents needle tip damage during production
Integrated binding and tightening mechanism in needle hoppers prevents needle entanglement
Quick-release hopper lid enables complete needle reloading within 3 minutes
Optimized production cycle of 10-15 seconds ensures high productivity and operational stability
Patented needle adsorption system (non-vacuum) reduces electricity consumption
Fully customizable configurations based on customer capacity requirements and specifications

Technical Specifications

Applicable Products	Pick and place needles with injection molding for peripheral blood lancets, venous blood collection needles, and various needle-based injection molded products
Production Speed	Variable based on mold cavity quantity and configuration
Product Qualification Rate	Above 99%
Operational Efficiency Rate	Above 97%
Power Requirements	AC380V, 50Hz, 4kW/hour
Dimensions	L1950 * W1250 * H1900 (mm) - Actual size may vary based on configuration
Weight	Approximately 2800kg
Operator Requirements	1 operator per production line
