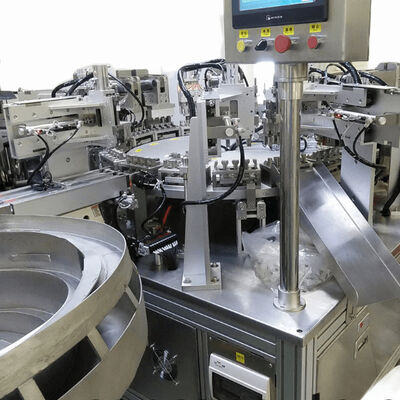

Automatic Euro Cap Assembly Machine with Touch Screen Operation for 4000-12000 Caps per Hour and 99% Qualified Rate

Brand Name:	SENCAN
Model Number:	SC-TP-738
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Place of Origin:

China

Certification:

CE,ISO9001

Power Source:

AC380V, 50Hz

Operation:

Touch Screen

Nature:

Automatic

Function:

Cap Assembly

Air Pressure:

0.6-0.8MPa

Productname:

Euro Cap Assembly Machine

Operating Mode:

Automatic

Satisfactory Rate:

Above 99%

Product Capacity:

4000-12000 Caps Per Hour

Packaging Details:

Wooden case

Highlight:

Product Description

Euro Cap Assembly Machine

Engineered for compatibility with various bottle shapes and cap designs to maximize production versatility and efficiency.

Key Features

Automatic assembly of caps for plastic IV infusion bags and bottles
Constructed from stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving sources at each workstation for simplified maintenance
Product-contact surfaces polished to ensure product protection
Servo-linked rod structure system for even and stable pressure application
Integrated inspection functions at each assembly stage to eliminate defective products
PLC control system with user-friendly human-machine interface operation
Servo motor and indexing drive for high assembly precision and qualification rates
Pneumatic power system for reduced maintenance time
Highly customizable to meet specific customer requirements and production demands

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400 pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
