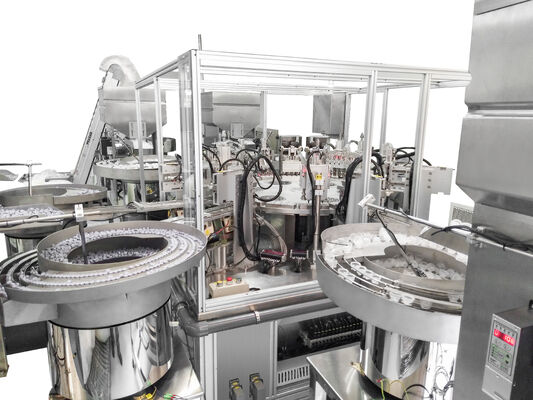

Non-standard customised high-standard, high-quality euro cap automated assembly machine

Brand Name:	SENCAN
Model Number:	SC-TP-833
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Applicable Product:

Infusion Cap, Euro Cap

Productname:

Euro Cap Assembly Machine

Efficiency Ratio:

Above 95%

Product Capacity:

4000-12000 Caps Per Hour

Advantage:

Flat Welding Surface Of Infusion Cap

Infeed Type:

Vibration Disc

Packaging Details:

Wooden case

Highlight:

Product Description

Euro Cap Assembly Machine

Engineered to reduce manual intervention while improving safety and consistency in cap assembly tasks for pharmaceutical packaging applications.

Key Features

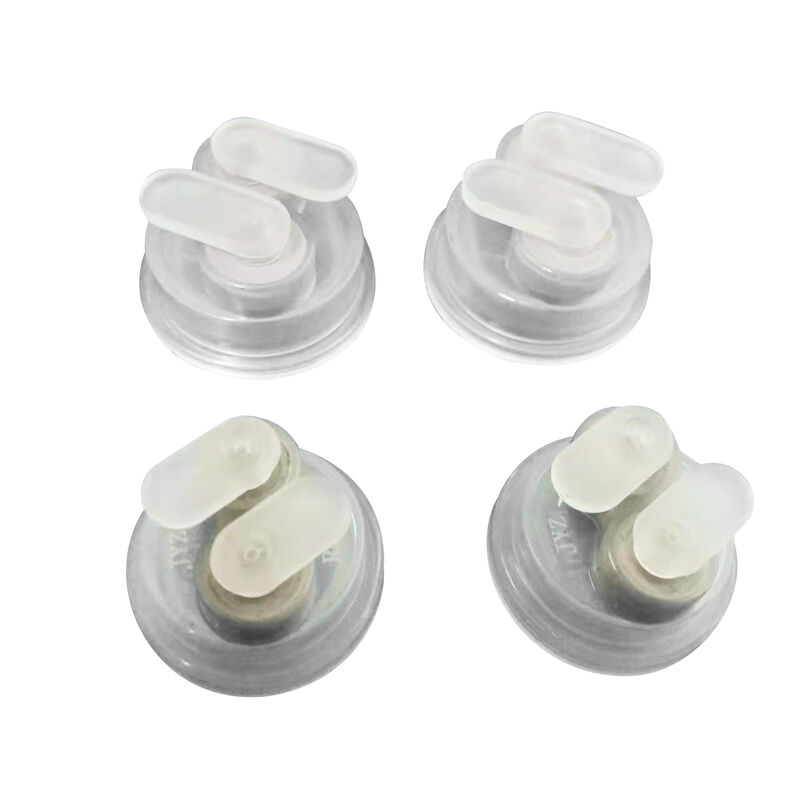

Automatic assembly of caps for plastic IV infusion bags and bottles
Constructed from stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished to protect product integrity
Servo-linked rod structure system ensures even, stable pressure for consistent cap pressing quality
Integrated inspection function after each assembly process eliminates defective products
PLC control system with user-friendly human-machine interface requires minimal operator training
Servo motor + indexing drive main power ensures high assembly precision and qualification rates
Pneumatic power system reduces maintenance downtime
Highly customizable to meet specific customer requirements and production demands

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-12000 pcs/h (customizable to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
