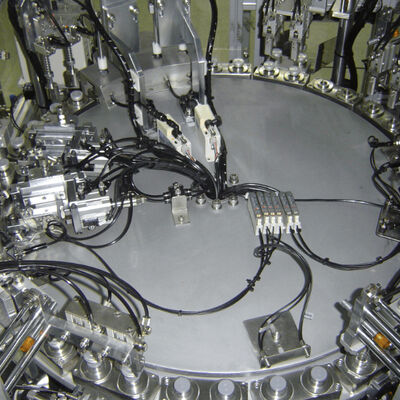

Automatic Medical Product Assembly Machine with 99% Qualified Rate, PLC Control, and Stainless Steel Construction for Medical Device Lines

Brand Name:	SENCAN
Model Number:	SC-TP-835
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Production Efficiency:

99%

Warranty:

1 Year

Controlsystem:

PLC Control With Touch Screen

Operation Interface:

Touch Screen

Assembly Type:

Automatic

Operating Speed:

Adjustable

Application:

Cap Assembly For Euro-style Bottles

Operation Person:

1 Person

Mechanism:

Servo

Packaging Details:

Wooden case

Highlight:

99% Qualified Rate Medical Product Assembly Machine

PLC Control Automatic Assembly Machine

Stainless Steel Medical Device Assembly Equipment

Product Description

Medical Product Assembly Machine

Advanced automated assembly system designed for seamless integration with medical device production lines, providing high-efficiency assembly of critical medical components.

Key Features

Automated assembly for spike ports and injection ports of non-PVC double tube soft bags
Handles aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs
Constructed with stainless steel and aluminum alloy materials compliant with ISO and GMP pharmaceutical standards
Titanium alloy aluminum plastic cap sealing with mirror-polished surface for superior sealing quality
Gear-driven sealing knife rotation with individual cap sealing for high qualification rates
Integrated detection systems at each workstation ensuring assembly accuracy and correctness
Servo motor and indexing drive power system for high-precision assembly operations
PLC control system with intuitive touch screen HMI for easy operation

Technical Specifications

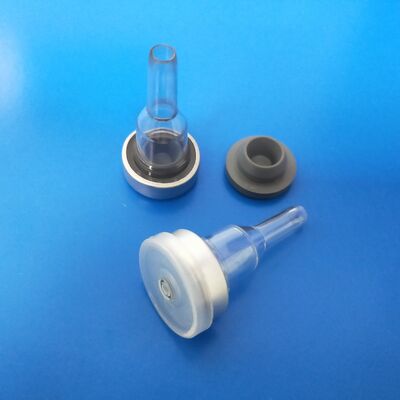

Applicable Products	Aluminum-plastic caps & ports, PC ports, spike ports and injection ports for non-PVC soft tube IV bags
Production Speed	8,000 - 15,000 pieces per hour (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW per hour
Dimensions	3500mm × 3400mm × 1800mm (L×W×H) - Actual size varies with production speed requirements
Weight	Approximately 3000kg
Operator Requirement	1 person per machine set

Quality Assurance

Designed and manufactured to meet stringent pharmaceutical industry standards, ensuring reliable performance and consistent output quality for medical device production.
