High Speed 1500-2500pcs/hr Lotion Pump and Trigger Sprayer Assembly Machine with Linear Sliding Rail Conveying and PLC Control System

Brand Name:	SENCAN
Model Number:	SC-TP-836
MOQ:	1 set
Price:	Negotiate price according to actual sitaution
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Features:

High Efficiency, Easy To Operate

Product Power:

220V

Frequency:

50/60Hz

Operating Speed:

Adjustable

Packaging Type:

Wooden Case

Air Pressure:

0.5-0.8MPa

Assembly Speed:

High Speed

Product Certification:

Operating Mode:

Automatic

Maintenance:

Low Maintenance

Safety Protection:

Emergency Stop Button

Packaging Details:

Wooden case

Highlight:

Linear Sliding Rail Conveying Lotion Pump Assembly Machine

PLC Control System Trigger Sprayer Assembly Machine

High Speed 1500-2500pcs/hr Liquid Sprayer Assembly Machine

Product Description

Lotion Pump Liquid Trigger Sprayer Assembly Machine

Advanced automated assembly system utilizing linear sliding rail conveying technology for consistent, high-precision manufacturing of lotion pumps, trigger sprayers, and spray nozzles.

Key Features

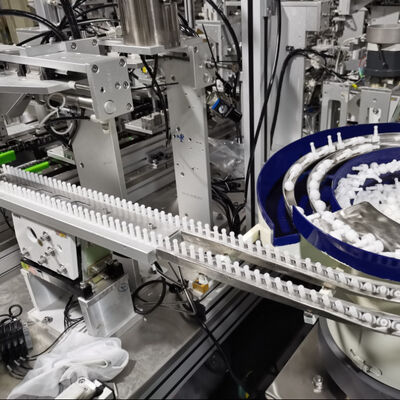

Linear sliding rail conveying system driven by servo motor for precise intermittent movement
Static fixtures with precise positioning devices and secondary positioning at each workstation
Independent manipulators at each station for simplified maintenance and operation
Cylinder-powered manipulators with quick spare parts changeover and easy debugging
Automatic silicone oiling system for tube insertion with 4L oil storage capacity
Optional enclosure for feeding plate to reduce production noise
Integrated detection processes after each assembly step to ensure product quality
PLC system control with intuitive touch screen operation interface

Technical Specifications

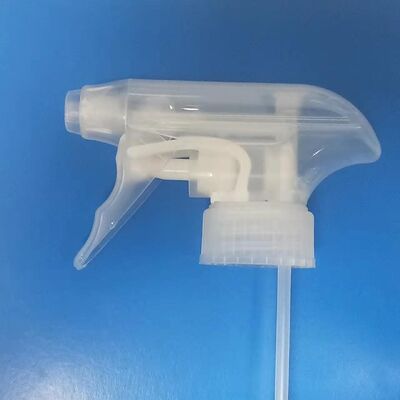

Applicable Products	Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed	1,500 - 2,500 pieces per hour (customizable to customer requirements)
Product Qualification Rate	Above 98%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW per hour
Dimensions	Custom sizing based on production speed requirements
Weight	Approximately 3,000 kg
Operator Requirement	1 operator per machine

Quality Assurance

Each assembly process includes integrated detection systems to prevent defective products from entering the qualified product stream, ensuring consistent high-quality output.
