Euro Cap Assembly Machine with 14000-15000pcs/h Capacity, PLC Control, and Stainless Steel Construction for IV Infusion Caps

Large Image : Euro Cap Assembly Machine with 14000-15000pcs/h Capacity, PLC Control, and Stainless Steel Construction for IV Infusion Caps

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-839

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Contact Now

Detailed Product Description

Control:	PLC	Productname:	Euro Cap Assembly Machine
Model:	Cap Assembly Machine	Operating Interface:	Touch Screen
Product Type:	Assembly Machine	Applicable Products:	Euro Cap
Capacity:	14000-15000pcs/h	Drive:	Servo Motor
Applicable Caps:	Euro Caps	Advantage:	Flat Welding Surface Of Infusion Cap
Operation Person:	1 Person	Frequency:	50/60Hz
Assembly Type:	Fully Automatic
Highlight:	14000-15000pcs/h Euro Cap Assembly Machine , PLC Control Cap Assembly Machine , Stainless Steel Infusion Cap Assembly Machine

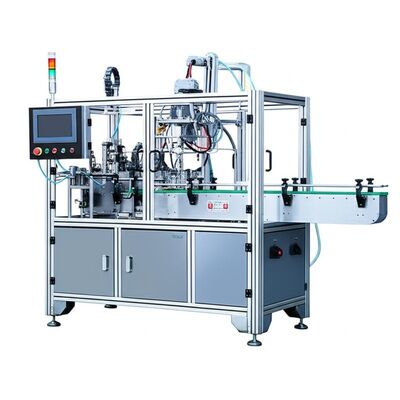

Euro Cap Assembly Machine

Automated assembly solution for fast and precise cap assembly tasks in production lines, ensuring consistent output and high efficiency.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy daily maintenance
Product-contact surfaces are polished to ensure product protection and quality
Automated foil cutting and welding processes integrated into the machine
Comprehensive check functions after each assembly step to eliminate defective products
PLC control system with user-friendly human-machine interface, requiring minimal operator expertise
Servo motor and indexing drive power system for high assembly precision and qualification rates
Pneumatic power system reduces maintenance time and replacement complexity
Highly customizable to meet specific product specifications, capacity requirements, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1,500-8,500 pieces/hour (customizable to customer requirements)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hour
Dimensions	Varies according to production speed requirements
Weight	Approximately 2,000 kg
Operator Requirements	3 sets/2 persons recommended, optimal configuration: 1 set/person
