Adjustable Speed CRC Cap Assembly Machine with Touch Screen Operation and 99% Qualified Rate for Desiccant Caps

Brand Name:	SENCAN
Model Number:	SC-TP-739
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Suitable Cap Types:

CRC Caps

Capacity:

High

Material:

Stainless Steel + Aluminium Alloy

Operation Mode:

Automatic

Power Source:

Electric

Frequency:

50Hz

Warranty:

1 Year

Operating Speed:

Adjustable Speed Settings

Safety Device:

Emergency Stop Button

Suitable Caps:

CRC Caps

Power Supply:

220V/380V, 50/60Hz

Operating Interface:

Touch Screen

Productname:

CRC Cap Assembly Machine

Packaging Details:

Wooden case

Highlight:

Adjustable speed CRC Cap Assembly Machine

Touch screen Desiccant Cap Assembly Machine

99% qualified rate Child Resistant Cap Assembly Machine

Product Description

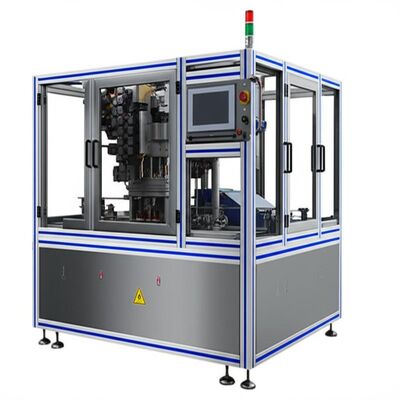

CRC Cap Assembly Machine

Product Overview

Advanced programmable assembly equipment designed for pharmaceutical and industrial cap production, featuring customizable settings to accommodate various production speeds and cap specifications.

Key Features

Versatile assembly capability for medicinal flange covers, duck tongue covers, spring covers, and moisture-proof agent caps
Automatic filling system for granular desiccants (molecular sieve, silica gel) and block desiccant core assembly
Integrated punching and film cutting mechanism for sealing paper, reducing production costs and improving product qualification rates
Centralized waste processing system for sealing paper to minimize operator workload
Connection to desiccant centralized supply bin prevents moisture absorption and contamination during assembly

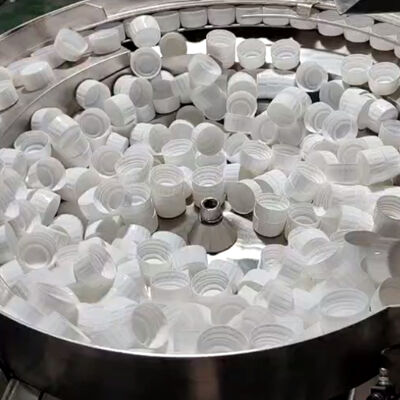

Circular cover feeding machine ensures stable and rapid material supply
Servo motor + splitter power system delivers stable running speed and high assembly precision
Comprehensive testing functions at each assembly step to ensure 100% product qualification
Automatic counting system for easy production output statistics
Separate export channels for good and defective products
PLC control system with human-machine interface for simplified operation
Customizable design to match specific production capacity and product specifications
Compatible with injection molding machines and image detection systems for complete automated production lines

Technical Specifications

Applicable Products	Desiccant cap, silica gel desiccant cap, moisture-proof lid, safety cap, CRC cap
Production Speed	1,500-8,500 pieces/hour (customizable to customer requirements)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hour
Dimensions	Customized based on production speed requirements
Weight	Approximately 2,000 kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
