Euro Cap Assembly Machine with 99% Qualified Rate, 4500-12000 per/hour Capacity, and Servo Motor Drive for Automatic Cap Assembly

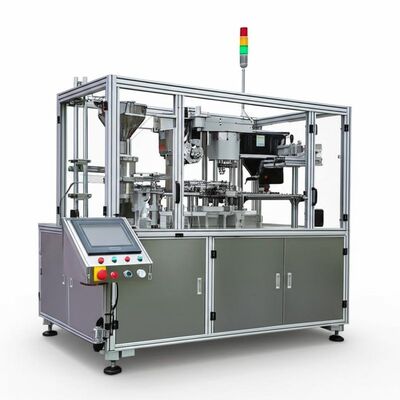

Large Image : Euro Cap Assembly Machine with 99% Qualified Rate, 4500-12000 per/hour Capacity, and Servo Motor Drive for Automatic Cap Assembly

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-846

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	2-20 set

Contact Now

Detailed Product Description

Qualified Rate:	99%	Machineweight:	Approximately 1500 Kg
Product Voltage:	220V	Cap Type:	Euro Cap
Materialcompatibility:	Plastic, Metal Caps	Assembly Capacity:	4500-12000 Per/hour
Product Type:	Assembly Machine	Suitable Caps:	Euro Caps
Drive:	Servo Motor	Model:	Cap Assembly Machine
Product Material:	Metal	Operation Mode:	Automatic
Highlight:	99% Qualified Rate Euro Cap Assembly Machine , 4500-12000 per/hour Cap Assembly Machine , Servo Motor Drive Automatic Cap Assembly Machine

Euro Cap Assembly Machine

Automated cap assembly system designed to enhance manufacturing efficiency with consistent, high-quality output for pharmaceutical and medical packaging applications.

Key Features

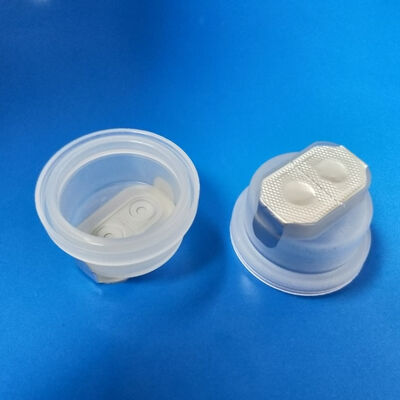

Automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials compliant with GMP standards
Independent driving sources at each workstation for simplified maintenance
Product-contact surfaces polished to ensure product protection
Automated foil cutting and welding processes
Integrated quality checks at each assembly stage to eliminate defective products
PLC control system with user-friendly human-machine interface
Servo motor and indexing drive for high assembly precision and qualification rates
Pneumatic power system for reduced maintenance time and simplified servicing
Highly customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1,500-8,500 pieces/hour (customizable to requirements)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hour
Dimensions	Varies according to production speed requirements
Weight	Approximately 2,000 kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
