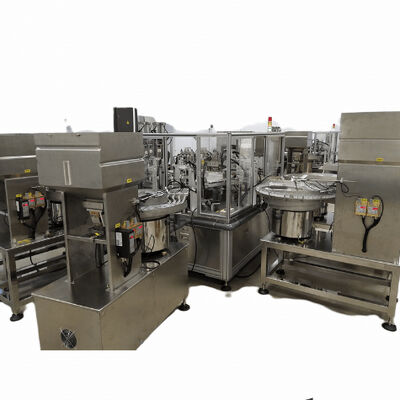

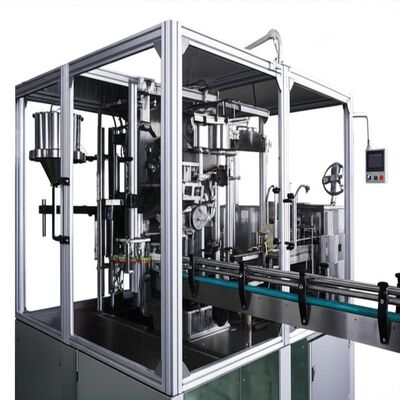

GMP Compliant Euro Cap Assembly Machine with 99% Qualified Rate and 1500-8500pcs/hr Efficiency

Large Image : GMP Compliant Euro Cap Assembly Machine with 99% Qualified Rate and 1500-8500pcs/hr Efficiency

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-849

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	2-20 sets

Contact Now

Detailed Product Description

Voltage:	380V	Bottle Type:	Plastic Bottles
Power Source:	Electricity	Frequency:	50Hz
Automation Grade:	Automatic	Product Power:	220V
Product Color:	Silver	Machine Weight:	Approximately 800 Kg
Efficiency Ratio:	Above 95%	Product Type:	Assembly Machine
Product Model:	Medical Infusion Caps	Operating Method:	Turntable
Warranty Period:	1 Year
Highlight:	99% qualified rate Euro Cap Assembly Machine , 1500-8500pcs/hr Infusion Cap Assembly Machine , GMP compliant Automatic Cap Assembly Machine

Euro Cap Assembly Machine

Automated cap assembly machine designed for various packaging applications, delivering high precision performance for peel seal foil caps and closures.

Key Features

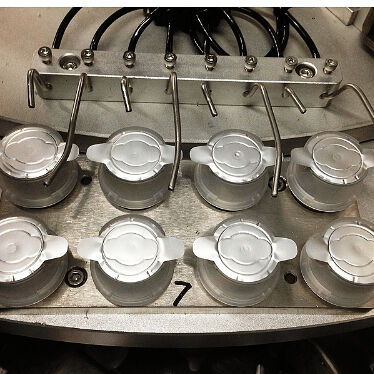

Automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials compliant with GMP standards
Independent driving source for each workstation facilitates easy maintenance
Product-contact surfaces are polished to ensure product protection
Automated foil cutting and welding processes
Integrated quality check functions at each assembly stage to eliminate defective products
PLC control system with user-friendly human-machine interface requiring minimal operator expertise
Servo motor and indexing drive power system ensures high assembly precision and qualification rates
Pneumatic power system reduces maintenance time and technical requirements
Highly customizable to meet specific product specifications, capacity, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500 pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
