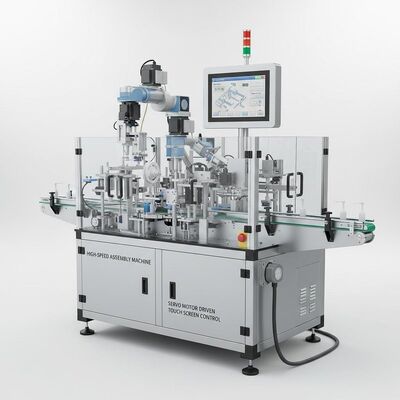

High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

Brand Name:	SENCAN
Model Number:	SC-TK-795
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	T/T,L/C
Supply Ability:	1-20 sets

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Product Certification:

Language:

English/Chinese

Applicable Product:

Jelly Cap

Warranty:

12 Months

Assembly Type:

Full-automatic

Air Consumption:

0.5m³/min

Assembly Capacity:

Large Capacity

Operation Type:

Turntable

Operation Method:

Touch Screen Control

Product Size Range:

Customizable

Operating Mode:

Automatic

Mechanism:

Servo

Packaging Details:

Wooden case

Highlight:

Product Description

Lotion Pump Liquid Trigger Sprayer Assembly Machine

Key Features

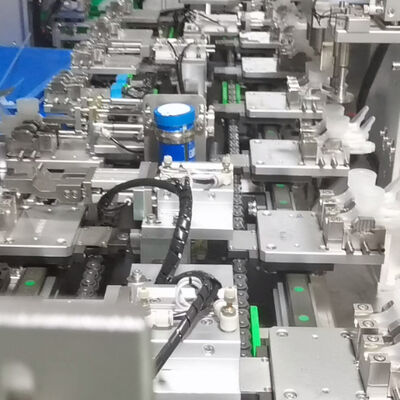

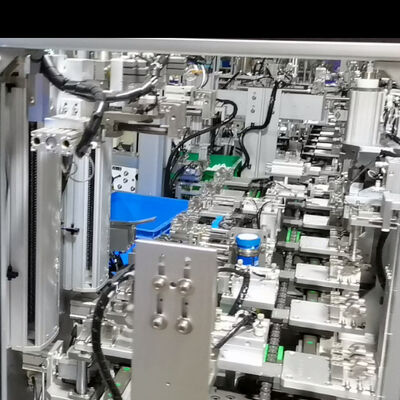

Linear sliding rail conveying system with servo motor drive for precise intermittent movement
Static fixtures during assembly with precise positioning and secondary positioning at each workstation
Independent manipulators at each station for simplified maintenance
Cylinder-powered manipulators for faster spare parts changes and easier debugging
Automatic silicone oiling during tube insertion process with 4L oil storage capacity
Optional enclosure for feeding plate to reduce production noise
Comprehensive detection after each assembly process to eliminate defective products
PLC system control with touch screen operation interface

Technical Specifications

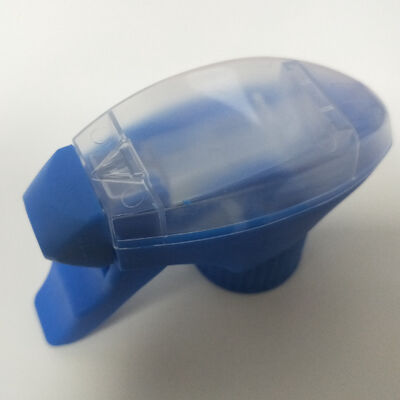

Applicable Products	Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed	1500-2500 pieces per hour (customizable to customer requirements)
Qualified Product Rate	Above 98%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW per hour
Dimensions	Actual size varies with production speed requirements
Weight	Approximately 3000kg
Operator Requirement	1 person per machine set
