Automated CRC Cap Assembly Machine with 99% Qualified Product Rate, PLC Control, and 1500-8500pcs/hr Speed for Desiccant Caps

Brand Name:	SENCAN
Model Number:	SC-TP-784
MOQ:	1 set
Price:	Negotiate price according to actual situation
Payment Terms:	L/C,T/T
Supply Ability:	1-20 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Qualified Product Rate:

Above 99%

Material:

Stainless Steel + Aluminium Alloy

Suitable Product:

CRC Cap

Operating Pressure:

0.6-0.8 MPa

Applicable Products:

Bottles With CRC Caps

Air Pressure:

0.6-0.8MPa

Suitable Bottle Types:

Plastic Bottles

Speed:

Adjustable

Size:

Customizable

Dimension:

Customizable

Suitable Caps:

CRC Caps

Type:

Assembly Machine

Control System:

PLC Control With Touch Screen Interface

Packaging Details:

Wooden case

Highlight:

99% Qualified Product Rate CRC Cap Assembly Machine

PLC Control with Touch Screen Interface Child Resistant Cap Assembly Machine

1500-8500pcs/hr Production Speed Desiccant Cap Assembly Machine

Product Description

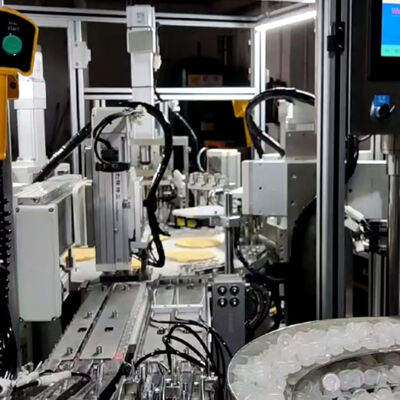

Automated CRC Cap Assembly Machine

Product Overview

This automated assembly machine delivers consistent cap placement accuracy to enhance product appearance and sealing performance for various industrial applications.

Key Features

Designed for assembly of medicinal flange covers, duck tongue covers, spring covers, and moisture-proof agent caps
Compatible with molecular sieve, silica gel, and other granular desiccant automatic filling applications
Integrated automatic punching and cutting film mechanism for sealing paper processing
Centralized sealing paper waste processing to reduce operator workload
Connects to desiccant centralized supply bin to minimize moisture absorption and contamination
Circular cover feeding system ensures stable and rapid material handling
Servo motor + splitter power configuration for stable operation and high assembly precision
Comprehensive testing functions at each assembly step to ensure 100% product quality
Automatic counting functionality for production output statistics
Separate export channels for good and defective products
PLC control system with human-machine interface for simplified operation
Customizable configurations based on customer production capacity and product specifications
Integration capability with injection molding machines and image detection systems for complete automated production lines

Technical Specifications

Applicable Products	Desiccant cap, silica gel desiccant cap, moisture-proof lid, safety cap, CRC cap
Production Speed	1,500 - 8,500 pcs/hr (customizable to customer requirements)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hr
Dimensions	Customized based on production speed requirements
Weight	Approximately 2,000 kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
