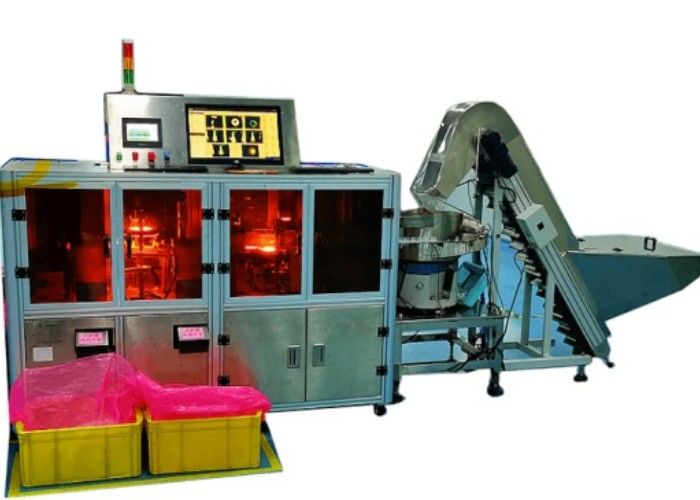

50Hz Video Inspection Machine Visual Inspection Machine CE Certificate

Detail Information

Place of Origin:

China

Certification:

Interface:

Touch Screen

Inspection Type:

Visual Inspection

Material:

Stainless Steel + Aluminium Alloy

Lighting Type:

LED

Power Supply:

220V/50Hz

Application:

Quality Control And Inspection Of Products

Packaging Details:

wooden case

Highlight:

Product Description

Advanced Technology For Inspection High-Speed Video Inspection Machines For Control

Features

For products requiring appearance check, physical inspection, replace traditional artificial eyesight inspection.
False detection rate not exceed 0.3%.
Inspection scope: insufficient injection molding (lack of material), injection deformation, injection molding bubbles, foreign bodies on surface exceed 0.3mm, missing parts, incorrect assembly, inaccurate location of parts, assembly deformation.
Automatic feeding, high-speed 360 degrees’ inspections without blind angle, automatic elimination of dirty products.
Conveyor belt exit can be equipped with electrostatic removal device.
Parts and control mode meet GMP requirements for pharmaceutical packaging material production.
PLC automatic control system. Touch screen HMI operation.

Properties

Applicable products	All products requiring appearance inspection
Production speed	15000-20000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depends on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 2kw, compressed air:7kg/m3
Dimension	Actual size varied with different production speed
Weight	1000kg
Operator	3set/person
