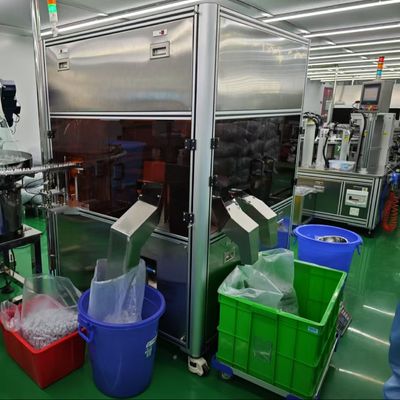

360-Degree Inspection Without Blind Angle 0.3% False Detection Rate Video Inspection Machine

Large Image : 360-Degree Inspection Without Blind Angle 0.3% False Detection Rate Video Inspection Machine

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-412

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Applicable Products:	All Medical Products	Inspection Method:	Video Inspection
Qualified Rate:	99%	Software:	Image Analysis System
Link:	Vibration Disc+loading Machine	Lighting:	LED
Inspection Type:	Visual Inspection	Maximum Inspection Speed:	100 Pieces/minute
Application:	Industrial Inspection	Control System:	PLC
Power Supply:	220V/50Hz	Frequency:	50Hz/60Hz
Interface:	Touch Screen
Highlight:	Blind Angle Video Inspection Machine , 360 Degree Video Inspection Machine

Features

1.For products requiring appearance check, physical inspection, replace traditional artificial eyesight inspection.

2.False detection rate not exceed 0.3%.

3.Inspection scope: insufficient injection molding (lack of material), injection deformation, injection molding bubbles, foreign bodies on surface exceed 0.3mm, missing parts, incorrect assembly, inaccurate location of parts, assembly deformation.

4.Automatic feeding, high-speed 360 degrees’ inspections without blind angle, automatic elimination of dirty products.

5.Conveyor belt exit can be equipped with electrostatic removal device.

6.Parts and control mode meet GMP requirements for pharmaceutical packaging material production.

7.PLC automatic control system. Touch screen HMI operation.

Properties

Applicable products	All products requiring appearance inspection
Production speed	15000-20000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depends on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 2kw, compressed air:7kg/m³
Dimension	Actual size varied with different production speed
Weight	1000kg
Operator	3set/person
