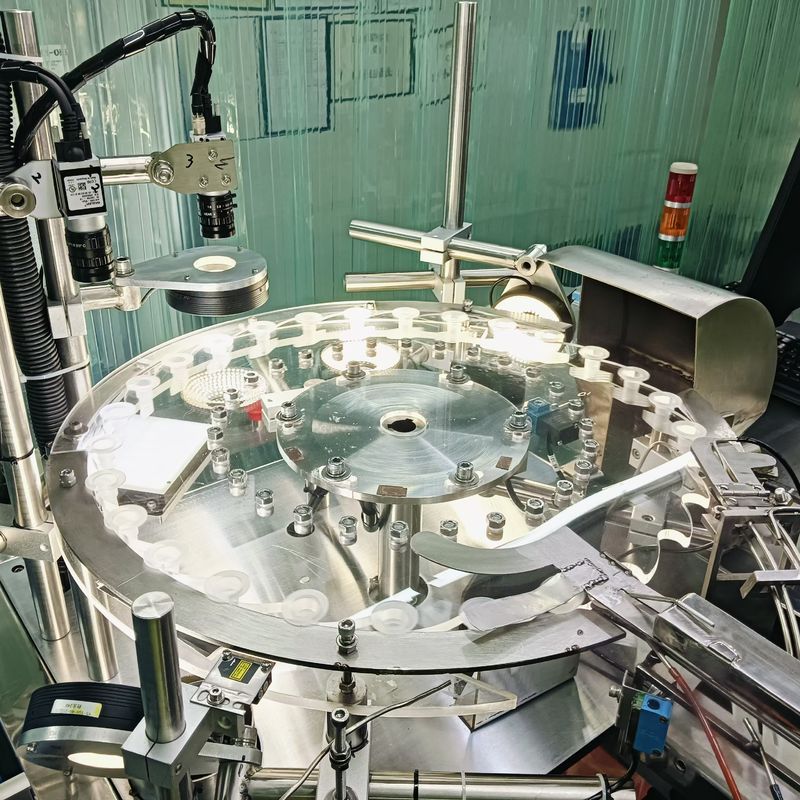

Infusion Bag Connector Testing Machine High Efficiency And Speed High Capacity

Large Image : Infusion Bag Connector Testing Machine High Efficiency And Speed High Capacity

Product Details:

Place of Origin:	CHINA
Brand Name:	SENCAN
Certification:	CE
Model Number:	SC-PT-663

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wooden box
Delivery Time:	3-4 months
Payment Terms:	L/C, T/T
Supply Ability:	3 sets per month

Contact Now

Detailed Product Description

Type:	Turntable	Main Power:	Servo Motor + Indexing Drive
Function:	Automated Assembly Of Medical Products	Air Pressure Gauge:	SMC
Material:	SST	Name:	IV Connector Testing Machine
Highlight:	Speed Infusion bag connector testing machine , Infusion Bag Connector Testing Machine

1.Technical Description.
Output:390-400pcs per minute, including 1 set of image inspection mainframe, 1 set of vibrating disk, 1 set of loading machine
The material is loaded into the vibrating disk by the loading machine----the vibrating disk selects the material into the track----scraping the material from the track into the dividing disk----then the product is overloaded from the dividing disk to the glass plate----the product passes through the guide.
Products from the distribution tray over to the glass plate --- products through the guide mechanism, and then detect the product to take the signal --- 360
degree image inspection of the product + front side inspection (5 cameras) --- image from bottom to top inspection of the product (1 camera) --- image from top to top inspection of the product (1 camera)
(1 camera) --- Image from top to bottom inspection products (1 camera) --- out of good products --- defective products

2.Features:

1)All materials of the equipment are made of stainless steel + aluminum alloy, meet GMP requirements.
2)Main power servo motor + indexing drive, high precision and high qualified product rate.

3)International brand feeding vibrator with lower noise, smoother feeding and faster speed.
