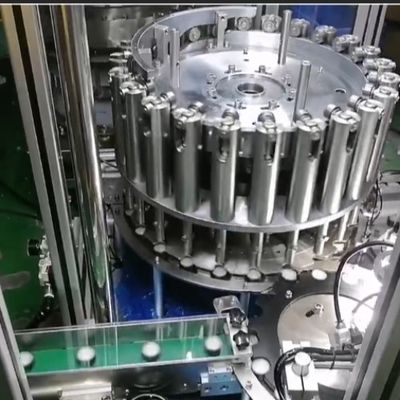

High-Speed Cap Lining Machine for Accurate Gasket Filling on Bottle Cap Manufacturing

• Production Process: Lifting the cap - Organizing the cap - Conveying the cap - Punching the gasket and entering the gasket - Counting the cap - Discharging the cap

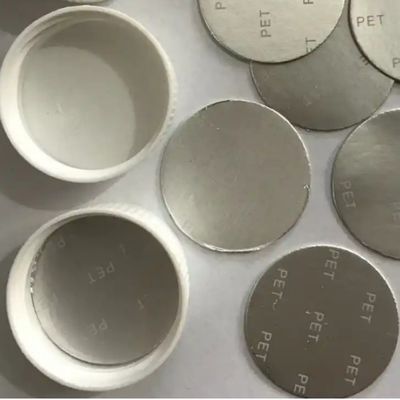

• Working Principle:Punching and cutting the rolled gasket material according to the specified size, and at the same time, filling the punched gasket into the cap, and finally pressing the gasket to the bottom of the cap by the pressure gasket device, which completes the whole process of pressing and filling the gasket at the same time.

• Features

1. The gaskets into the cap accurately, fast speed, high efficiency, gaskets pressed to the bottom of the cap, will not be warped, the finished product is beautiful and meets the standard.

2. When the cap size is different, it is easy and convenient to change the gasket punching mould and turntable and suction cup.

3. The raw material of gasket is made of rolled material, which can be adjusted according to the difference of gasket material to save gasket material.

4. The material entering punching and filling mechanism can punch and fill the material at the same time, completing the gasket into the cap action at one time.

5.Designed and manufactured in accordance with national "GMP" standards and process requirements.

6. Replaces manual work, automatically punches and cuts gasket material into the cover, greatly improving work efficiency.

7. PLC control system, touch screen HMI operation.

• Properties
