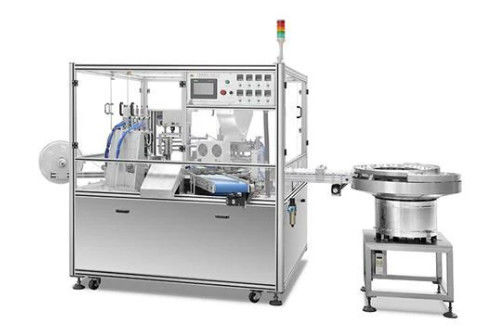

Maximize Efficiency and Minimize Errors with Our Video Inspection Machine 95% Operation Rate

Large Image : Maximize Efficiency and Minimize Errors with Our Video Inspection Machine 95% Operation Rate

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Lighting Type:	LED	Main Power:	Servo Motor + Indexing Drive
Application:	Inspection And Quality Control	Illumination:	LED
Applicable Products:	All Medical Products	Capacity:	4500-15000
Qualified Rate:	98%	Type:	Industrial Inspection Equipment
Software:	Image Analysis System	Air Pressure Gauge:	SMC
Material:	Stainless Steel	Inspection Method:	Video Camera
Inspection Type:	Visual Inspection
Highlight:	95% Operation Rate Video Inspection Machine , Minimize Errors Video Inspection Machine , Maximize Efficiency Video Inspection Machine

Features & Benefits

1.For products requiring visual inspection, physical inspection, replace traditional artificial vision inspection.
2.False detection rate does not exceed 0.3%.
3.Inspection scope: insufficient injection (lack of material), injection deformation, injection bubbles, foreign bodies on the surface exceeding 0.3mm, missing parts, incorrect assembly, inaccurate position of parts, assembly deformation.
4.Automatic feeding, high-speed 360-degree inspection without blind angle, automatic rejection of dirty products.
5.Conveyor outlet can be equipped with electrostatic removal device.
6.Parts and control mode meet GMP requirements for pharmaceutical packaging production.
7.PLC automatic control system. Touch screen HMI operation.

Properties

Applicable products	All products requiring appearance inspection
Production speed	15000-20000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depends on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 2kw, compressed air:7kg/m³
Dimension	Actual size varied with different production speed
Weight	1000kg
Operator	3set/person
